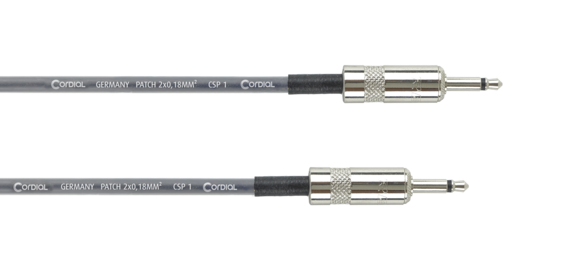

CPI ZZ GREY

In intensive co-operation with sound buffs, our CPI ZZ patch cable was specifically developed for working with modular synthesizers. In this particular field the challenges as regards patch cables are pretty stiff because analog synthesizers are quite demanding to work with, e.g. because

constantly changing signals and a myriad of variations can be generated

  • the necessity to keep track of highly complex structures
  • the cables are exposed to extreme tensile strains
  • any interference would distort the rather sensitive signals

CORDIAL offers you the suitable overall solution:

  • length-specific color codings by means of multi-colored sleeves.
  • hand-soldered 3.5 mm REAN all-metal connectors guaranteeing perfect strain relief
  • welded on plastic connectors totally prevent any interferences
  • the shielded bulk cable CSP 1 utilizes ultra-pure copper (OFC) and complies with RoHS II environmental standards.

Audio and CV transmissions at the highest quality level!


Product information
cable CIK 122
cable assign PP
Brand REAN
plug
1 1/8" Plug mono
1 1/4" Plug mono
Specifications
Type Instrument cable
Part no. CIK 122

Mechanical data

Conductor area 0,22 mm²
Composition of conductor 7 x 0,20 mm bare copper
Conductor isolation PE
Composition of cores coaxial composition
Screen spiral wounded copper wire screen + conductive plastic
Overall jacket PVC black, blue, green, red
Overall diameter 6,1 ± 0,2 mm
Weight 59 g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 63 mm
fixed ~ 31 mm
Electrical data
Conductor resistance 85 Ω / km
Capacity (cond./cond.) 130 pF / m ± 8 %
Test Voltage 1500 V eff.
Product variants
Colour Part number
CPI 0.15 ZZ-GREY
CPI 0.3 ZZ-GREY
CPI 0.6 ZZ-GREY
CPI 0.9 ZZ-GREY
CPI 1.2 ZZ-GREY
