Unbalanced Connection
elements

EU PC

New

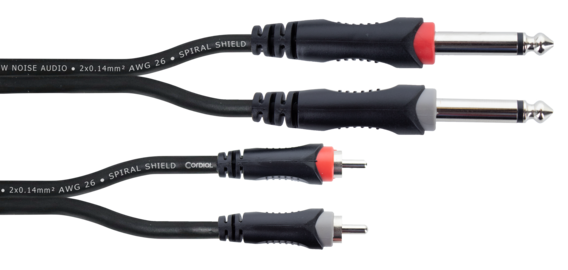

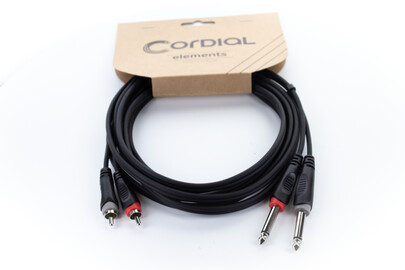

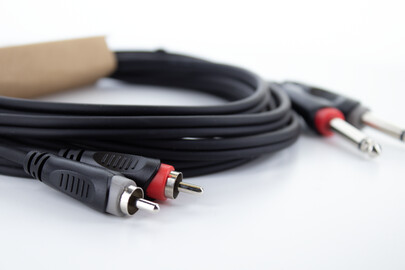

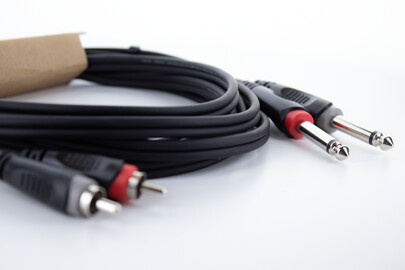

The EU PC is an unbalanced twin cable e.g. for connecting two RCA outputs to two 6.3 mm mono jack inputs. The transmission is unbalanced. The robust RCA and jack plugs with nickel-plated contacts, colored channel marking, molded-on bend protection, and a durable PVC jacket ensure long durability and high mating cycles.

The conductor area of 0.14 mm² each and shielding of twisted copper strands (spiral shield, 90% coverage) ensure crystal clear and undistorted signal transmission. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound provide a twin cable that is easy to wind.

Product information
cable elements MIC 2 twin

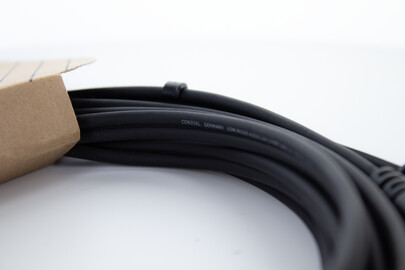

Jacket PVC
cable assign PC
connector brand -
plugs
2x 1/4" Plug mono
2x Cinch-RCA
technical data
Technical facts
Composition of cores 1 core twin cable
Shielding Spiral wound copper wire (spiral shield, 90% coverage)
Isolation PE
Conductor area 0.14 mm²
AWG AWG 26
category Microphone
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 125 Ohm/km
diameter 4 x 8 mm
Capacity cond.-cond. (pF/m) 250 pF/m
Lengths & colours
Colour Length Matchcode item no.
1.00 EU 1 PC 14839
1.50 EU 1,5 PC 14840
3.00 EU 3 PC 14841
6.00 EU 6 PC 14842
