Instrument
elements

EI PR

New

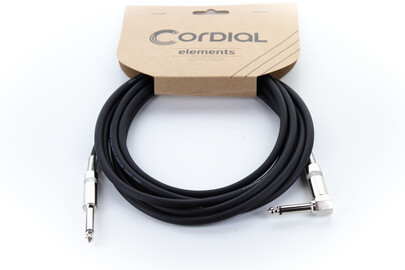

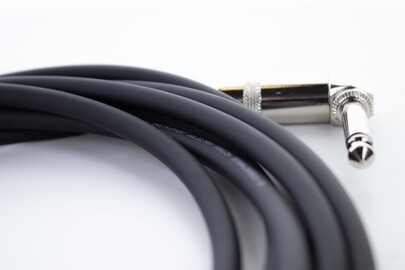

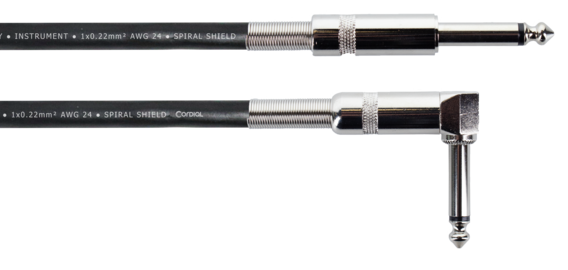

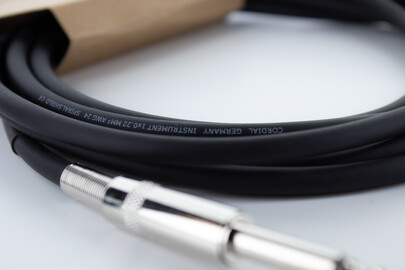

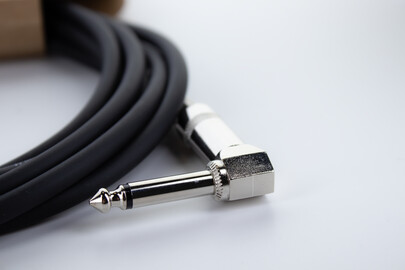

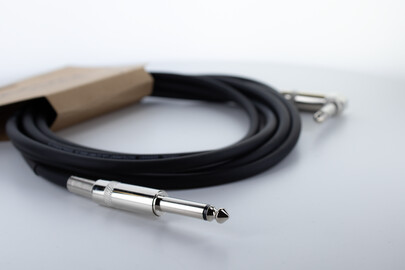

The EI PR is a right angle plug instrument cable for aspiring rock stars. The rugged 6.3 mm plugs (1x straight, 1x right-angled) combined with nickel-plated contacts and a durable PVC jacket withstand even the roughest rehearsal rooms or stages.

The conductor area of 0.22 mm² and a double screen of spiral shielding and conductive plastic transport even the rockingest hymns unadulterated to their destination. Due to the single strand construction (28 x 0.10 mm) and the robust but pliable PVC compound, it is particularly flexible and can be wound easily. Due to the metal spiral bend protection, the cable can withstand even harder loads.

Also available with two straight jacks as EI PP.

Product information
cable elements INS 1
Jacket PVC
cable assign PR
connector brand -
plugs
1 1/4" Plug mono
1 1/4" Plug right angle mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 90 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage) + conductive plastic
Capacity cond.-cond. (pF/m) < 85 pF/m
category Instrument
diameter 6.0 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 EI 1,5 PR 14760
3.00 EI 3 PR 14761
6.00 EI 6 PR 14762
