Instrument
peak

CXI PP-SKY

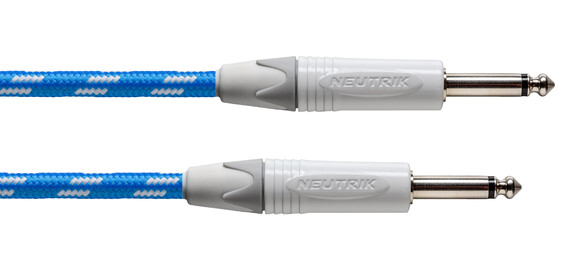

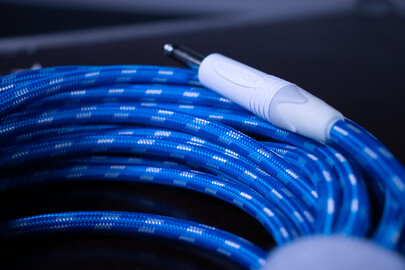

Our white-blue SKY textile cable combines retro design with a sophisticated technological structure. The technical properties of the proven CIK 122 bulk cable and the textile jacket featuring special stranding techniques and a specific material mix are perfected by two robust white NEUTRIK NP2 connectors.
All this and the low capacity values make this a supreme, straight sounding instrument cable.

Product information
cable
Jacket Textile
cable assign PP
connector brand NEUTRIK ®
plugs
1x 1/4" Plug mono
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 7 x 0.20 mm
Material bare copper
Conductor resistance 85 Ohm/km
Shielding spiral wound copper wire screen + conductive plastic
Capacity cond.-cond. (pF/m) 130 pF/m
category Instrument
diameter 6.1 mm
weight bulk cable 59 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
3.00 CXI 3 PP-SKY 13336
6.00 CXI 6 PP-SKY 13337
9.00 CXI 9 PP-SKY 13338
