Unbalanced Connection
elements

EU FC

New

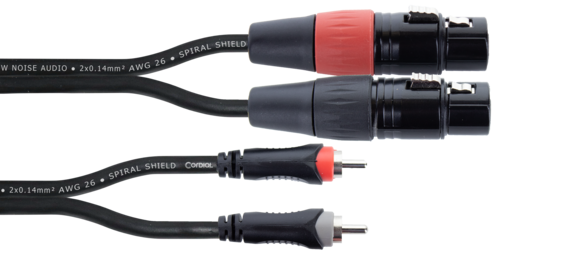

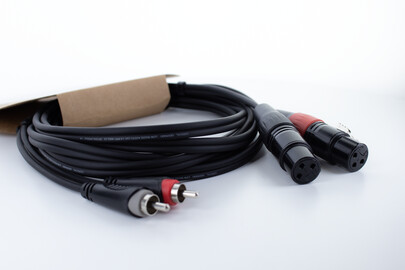

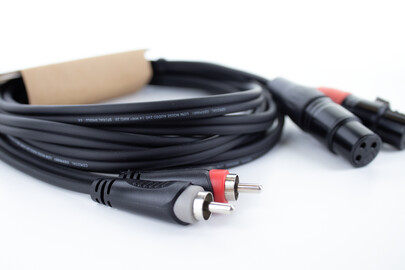

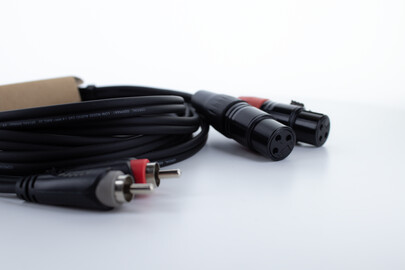

The EU FC is an unbalanced twin cable for connecting two RCA outputs to two XLR inputs. The transmission is unbalanced. The robust RCA and XLR female connectors with nickel-plated contacts, colored channel marking, molded-on bend protection, and a durable PVC jacket ensure long durability and high mating cycles.

The conductor area of 0.14 mm² each and shielding of twisted copper strands (spiral shield, 90% coverage) ensure crystal clear and undistorted signal transmission. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound provide a twin cable that is easy to wind.

Product information
cable elements MIC 2 twin
Jacket PVC
cable assign FC
connector brand -
plugs
2 XLR female 3-pole
2 Cinch-RCA
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 125 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 90% coverage)
Capacity cond.-cond. (pF/m) 250 pF/m
category Microphone
diameter 4 x 8 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.00 EU 1 FC 14851
1.50 EU 1,5 FC 14852
3.00 EU 3 FC 14853
