CFD DFMT

Professional-Multicore for the stage and studio

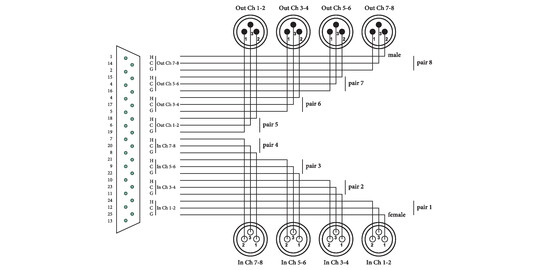

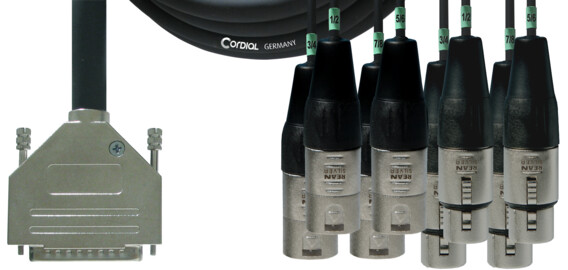

Our CFD DFMT is a professional digital multicore cable (AES/EBU) for LIVE and studio use. The pin configuration complies with the analog Tascam D-Sub  25 specification (DA 88), i.e. D-Sub  25 pin connector male to 4 XLR male/4 XLR female. The XLR connectors have a 3-pin configuration and a nickel-plated metal housing.

The corresponding bulk cable is the CMD 8, which transmits analog as well as DMX signals excellently and features a spiral wound tinned copper pair screen and an additional tinned overall shield.

Product information
cable CMD 8
Jacket PVC
cable assign DFMT
connector brand REAN SILVER ®
plugs
1 D-Sub
4 XLR male 3-pole
4 XLR female 3-pole
Specifications
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material tinned copper
Conductor resistance 140 Ω/km
Shielding tinned copper braided screen ( >80% covering)
Capacity cond.-cond. (pF/m) 45 pF / m
category DMX-AES/EBU-110 Ohm
diameter 12.5 ± 0.5 mm
weight 178 g/m
Conductor isolation PE
Product variants
Colour Part number Length
CFD 1.5 DFMT 1.50
CFD 3 DFMT 3.00
CFD 5 DFMT 5.00
