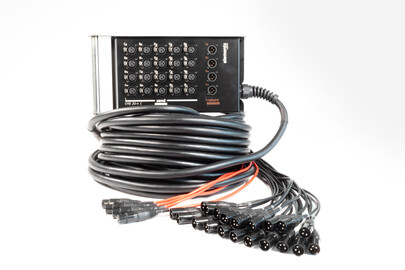

EYB 20-4 C

20 send 4 return channel multicore and stagebox

The EYB 20-4 C is a 24-channel multicore with stagebox for balanced transmission of 24 individual channels (20x send, 4x return) from the stage to the FoH or in the rehearsal room.

The unbreakable box with metal housing is particularly robust and withstands multiple loads. The conductor pairs with 0.14 mm² conductor area each are individually screened (foil shield with drain wire, 100% coverage) and thus enable unaltered signal transmission even over longer distances.

The individual channels are numbered on the stagebox and cable end for easy handling. Individual rubber boots on the XLR male connectors provide protection from dust and moisture, and all connectors are additionally secured in a bag for transport. The rugged PVC jacket reliably protects the pairs of conductors inside against bends and stresses. Additional bend protection elements at all transition points ensure a long durability. Both stagebox and connector can be opened if required.

With the elements line, Cordial offers products for beginners and particularly price-conscious users who nevertheless appreciate the usual Cordial quality.

Product information
Bulk cable elements MC 24
Jacket PVC
cable assign FM
connector brand -
plugs
20x NC3FXX
4x NC3MXX
20x NC3MXX
4x NC3FXX
technical data
Technical facts
Composition of cores 24 pairs twisted
Isolation PE
category Stagebox
Material bare copper
Lengths & colours
Colour Length Matchcode item no.
30.00 EYB 20-4 C 30 14920
