Y-Adapter
ESSENTIALS

CFY YCC

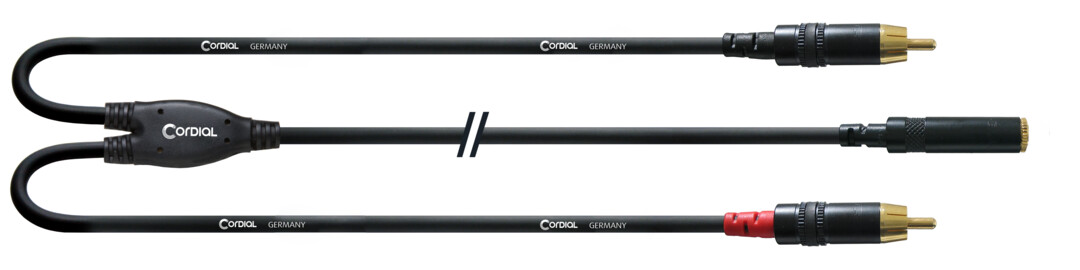

With the CFY YCC adapter cable featuring 1x 3.5 mm stereo mini jack socket to 2x male cinch, for example, a simple stereo signal is split into two mono components. Thus, a system, in which only one signal is actually available, can be used in stereo mode.

Both the mini jack and the Cinch plugs come from REAN made by Neutrik® and are hand soldered. Their gold plated contacts effectively protect against corrosion. The wire cross-section is 2x 0.22mm² and at both ends the splits are approx. 15 cm long. The cables are color coded (red/black) to facilitate the distinction between right and left.

Product information
cable intro cable 2

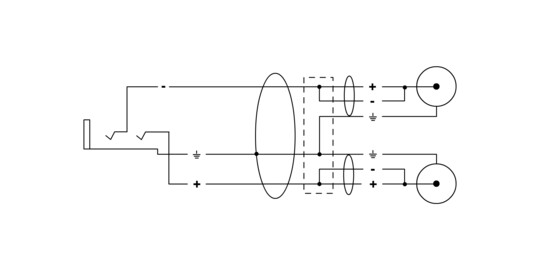

cable assign YCC
Brand REAN
plug
1 1/8" Socket stereo
2 Cinch-RCA
Specifications / Tender
Type Microphone cable
Part no. intro cable 2

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 4,3 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number
CFY 0.3 YCC
