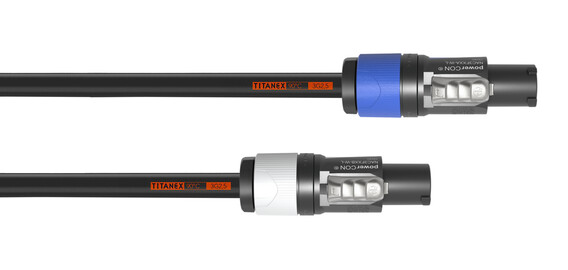

CFCA FCB 25

High-performance Titanex® power cable with 2.50 mm² conductor area

The CFCA FCB 25 is the even more powerful version of the CFCA FCB. Due to the 3x 2.50 mm² conductor area and the robust, three-pole NEUTRIK® powerCON® NAC3FCA-1 & NAC3FCB-1 connectors with interlock, a current carrying capacity of up to 20 A is achieved. In contrast to conventional powerCON® plugs, the revised plugs can be plugged under load (IEC 61984) in combination with the built-in versions NAC3MPXXA and NAC3MPXXA-WOT.

The flexible and reliable TITANEX® bulk cable with insulation and outer jacket made of elastomer (polychloroprene) is oil resistant and flame retardant according to IEC/EN 60332-1-2 standard. Transparent heat shrink tubes at both ends allow individual labelling.

  • 3x 2.50 mm² conductor area
  • Oil resistant and flame retardant IEC/EN 60332-1-2 standard
  • Heat Shrink Tubes
  • UL, C-UL recognized components, VDE certified and SEV approved
  • Current carrying capacity up to 20 A
icon
PowerCON

Attention: Safe operation until 250V~ 16A. The powerCON® plug is a connector without breaking capacity, i.e. the powerCON® should not be connected or disconnected under load or live! Exception: In combination with chassis connector NAC3MPXXA, NAC3MPXXA-WOT and NAC3MPXXB, NAC3MPXXB-WOT (IEC 61984).

For safety reasons, please note the technical data as well general operating and safety instructions.

Product information
cable H07RN-F 3G2,5 TITANEX
Jacket Polychloropren
cable assign FCAFCB
connector brand NEUTRIK ®
plugs
1 powerCON
1 powerCON
technical data
Conductor area 2.5 mm²
AWG AWG 13
category Power
diameter 14.0 ± 0.2 mm
weight 195 g/m
Downloads
Lenghts & colours
Colour Length Matchcode item no.
0.50 CFCA 0.5 FCB 25 14950
0.75 CFCA 0.75 FCB 25 14951
1.00 CFCA 1 FCB 25 14952
1.50 CFCA 1.5 FCB 25 14953
3.00 CFCA 3 FCB 25 14954
5.00 CFCA 5 FCB 25 14955
10.00 CFCA 10 FCB 25 14956
