Digital Interface
elements

ED AA

New

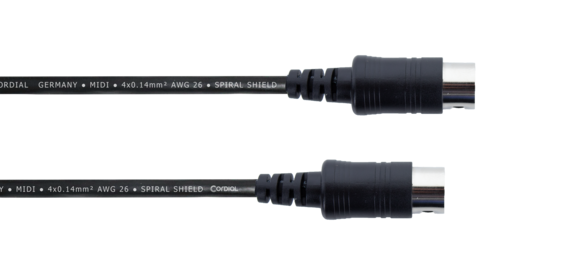

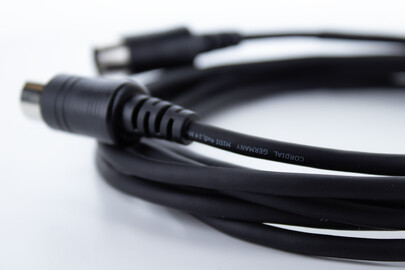

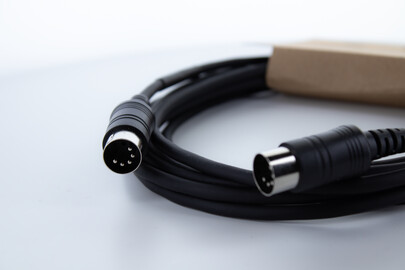

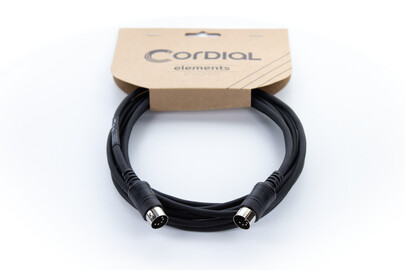

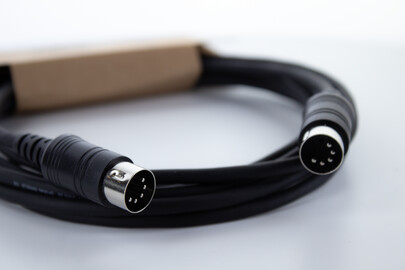

The ED AA is a reliable 5-pin MIDI cable. The robust MIDI plugs with nickel-plated contacts and splash bend protection combined with a durable and stain-resistant PVC jacket ensure long durability even in dirty environments.

The conductor area of 4x 0.14 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure safe and unaltered signal transmission.

Product information
cable elements MIDI
Jacket PVC

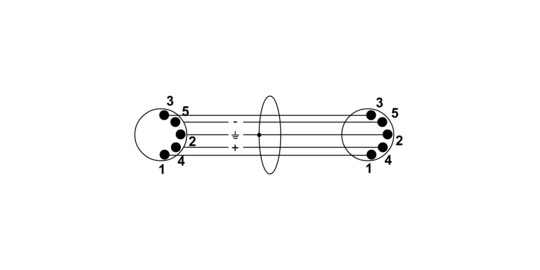

cable assign AA
connector brand -
plugs
1 DIN 5-Pole/MIDI
1 DIN 5-Pole/MIDI
technical data
Technical facts
Conductor area 4x 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 122 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Capacity cond.-cond. (pF/m) 37 pF/m
category MIDI
diameter 5.0 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
0.50 ED 0,5 AA 14893
1.00 ED 1 AA 14894
1.50 ED 1,5 AA 14895
3.00 ED 3 AA 14896
6.00 ED 6 AA 14897
