Unbalanced Connection
elements

EU CC

New

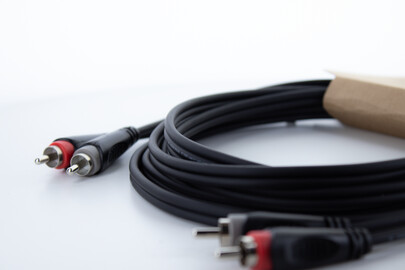

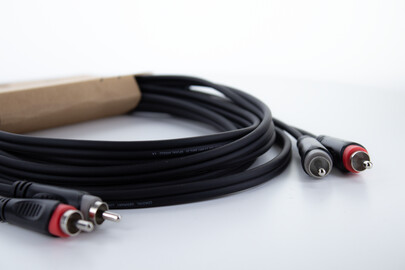

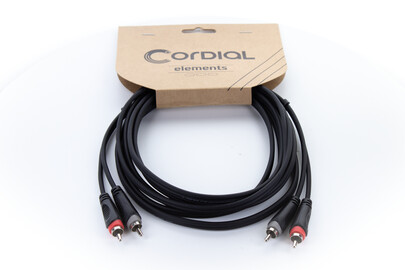

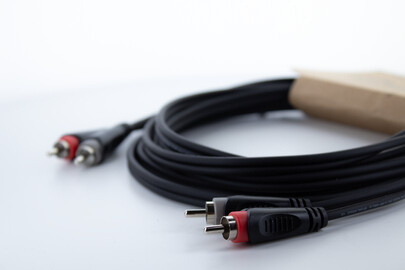

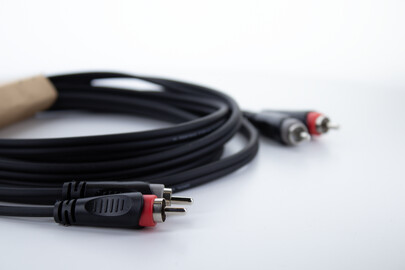

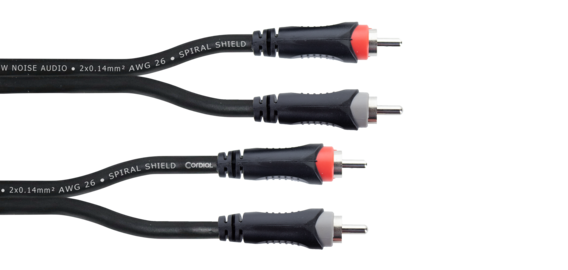

The EU CC is an unbalanced twin cable with two RCA plugs each for the transmission of stereo signals. The robust RCA plugs in discreet black with nickel-plated contacts, molded-on bend protection, colored channel marking, and a durable PVC jacket ensure long durability and high mating cycles.

The conductor area of 0.14 mm² each and shielding of twisted copper strands (spiral shield, 90% coverage) ensure crystal clear and undistorted signal transmission. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound provide a twin cable that is easy to wind.

Product information
cable elements MIC 2 twin
Jacket PVC
cable assign CC
connector brand -
plugs
2x Cinch-RCA
2x Cinch-RCA
technical data
Technical facts
Composition of cores 1 core twin cable
Shielding Spiral wound copper wire (spiral shield, 90% coverage)
Isolation PE
Conductor area 0.14 mm²
AWG AWG 26
category Microphone
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 125 Ohm/km
diameter 4 x 8 mm
Capacity cond.-cond. (pF/m) 250 pF/m
Lengths & colours
Colour Length Matchcode item no.
0.50 EU 0,5 CC 14834
1.00 EU 1 CC 14835
1.50 EU 1,5 CC 14836
3.00 EU 3 CC 14837
6.00 EU 6 CC 14838
