Microphone
elements

EM FM

New

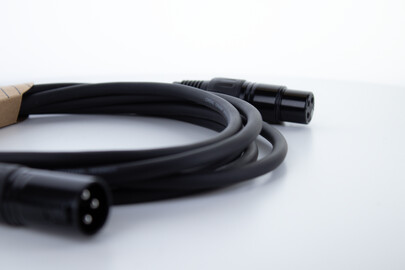

The EM FM is the microphone cable for singers and rock stars. The rugged XLR connectors with nickel-plated contacts combined with a durable PVC jacket can withstand even the most legendary gig or the dirtiest rehearsal room.

The conductor area of 2x 0.22 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure crystal clear and unaltered signal transmission. The single-strand construction (28 x 0.10 mm) and the robust but bendable PVC sheathing compound ensure a particularly flexible XLR cable that is easy to wind.

Product information
cable elements MIC 1
Jacket PVC
cable assign FM
connector brand -
plugs
1x XLR female 3-pole
1x XLR male 3-pole
technical data
Technical facts
Composition of cores 2 cores twisted
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Isolation PE
Conductor area 0.22 mm²
AWG AWG 24
category Microphone
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 80 Ohm/km
diameter 6.0 mm
Capacity cond.-cond. (pF/m) 58 pF/m
Lengths & colours
Colour Length Matchcode item no.
0.50 EM 0,5 FM 14743
1.00 EM 1 FM 14744
1.50 EM 1,5 FM 14745
2.50 EM 2,5 FM 14746
3.00 EM 3 FM 14747
5.00 EM 5 FM 14748
6.00 EM 6 FM 15001
7.50 EM 7,5 FM 14749
10.00 EM 10 FM 14750
