Hybrid

CDP 1-25

New
DMX Hybrid Cable

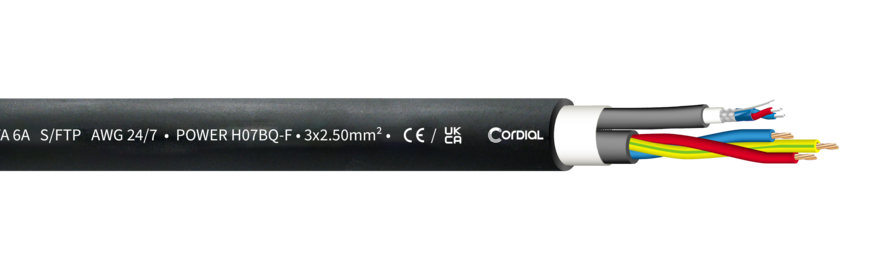

Event technicians and PA companies wanting to lay out DMX and power cables in a quick and uncomplicated way will find a solution in our hybrid CDP 1-25 cable.

It provides an optimal 110 Ω AES/DBU and DMX data signal transmission – all in one cable. An aluminum foil and braided copper wires (braided shield) encase the interior of the DMX cable comprehensively, thus protecting it from outside electrical interferences.

Power (2,5mm²) is safely supplied by a separate line in the same jacket.

Product information
Conductor area 2x 0,22 mm² / 3x 2,50 mm²
AWG AWG 24 / AWG 14
Composition of conductor 7 x 0,20 mm / 50 x 0,245 mm
Material tinned copper / bare copper
Shielding 1 twisted pair + 3 x 2,5 mm² tinned copper braided screen
Capacity cond.-cond. (pF/m) 40 pF / m
Specifications
Type DMX Hybrid Cable
Part no. CDP 1-25

Mechanical Data
Conductor area 2x 0.22 mm²
3x 2.50 mm²
AWG AWG 24
AWG 14
Composition of conductor 7 x 0.20 mm tinned copper
50 x 0.245 mm CU bare copper
Conductor isolation PE
Screen 1 twisted pair + 3 x 2.5 mm² tinned copper braided screen
Overall jacket PVC black
Overall diameter 16.00 ± 0.4 mm
Weight 350 g/m
Working temperature
mobile (-5°C) - (+70°C)
fixed (-20 °C) - (+80 °C)
min.Bending radius
mobile 10 x overall diameter = ~ 164 mm
fixed 5 x overall diameter = ~ 82 mm
Electrical data
Conductor resistance 85 Ω / km (0.22 mm²)
Capacity (cond./cond.) 40 pF / m (0.22 mm²)
Capacity (cond./screen) 90 pF / m (0.22 mm²)
Characteristic impedance 110 Ω
Test Voltage 1200 V eff. // 2500 V eff.
