Instrument
elements

EI PR-TWEED-YE

New

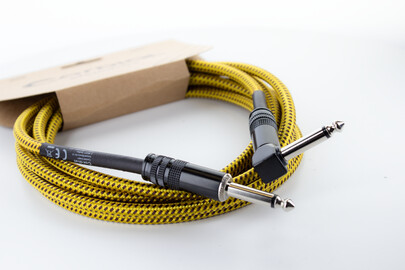

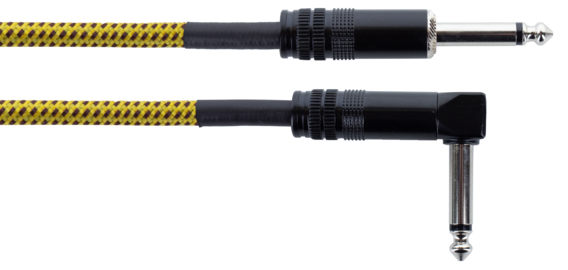

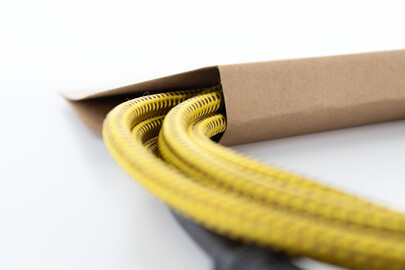

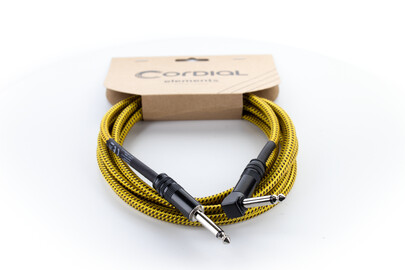

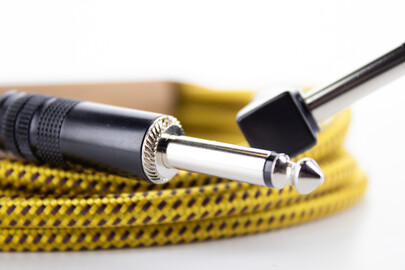

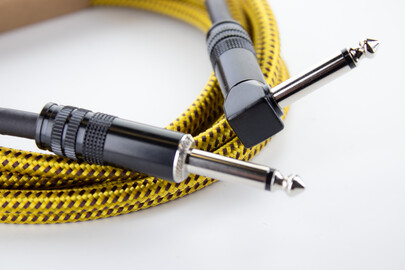

The EI PR-TWEED-YE is a robust instrument cable with one right-angle plug for noble musicians and their instruments. It combines a high-quality textile jacket in gold tones with black 6.3 mm jack plugs (1x straight, 1x angled) and nickel-plated contacts. The conductor area of 0.22 mm² and a double shielding of spiral shielding and conductive plastic transport even the most elegant pieces to their destination unaltered. Due to the single strand construction (28 x 0.10 mm), the durable but flexible PVC compound, and the exquisite textile braiding, it is particularly flexible and can be wound easily.

Also available with two straight handles as EI PP-TWEED-YE.

Product information
cable elements INS 3
Jacket Textile
cable assign PR
connector brand -
plugs
1 1/4" Plug mono
1 1/4" Plug right angle mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 90 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage) + conductive plastic
Capacity cond.-cond. (pF/m) < 85 pF/m
category Instrument
diameter 6.5 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 EI 1,5 PR-TWEED-YE 14775
3.00 EI 3 PR-TWEED-YE 14776
5.00 EI 5 PR-TWEED-YE 14777
7.50 EI 7,5 PR-TWEED-YE 14778
