Light DMX

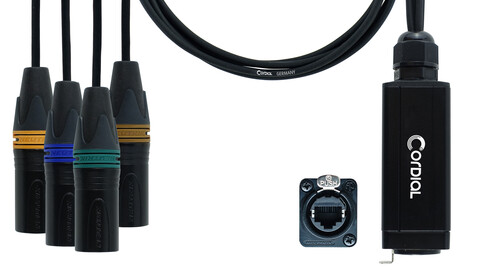

Our etherCON QUAD DMX-AES/EBU adapter utilizes only one conductor pair of the customary 4-pair CAT cable, thus enabling the cost-efficient transmission of 4 parallel DMX or AES/EBU signals. It is equipped with the 3-pin version of black female NEUTRIK® XLR metal connectors. After a 70 cm split. each single cable is TIA 568 A color-coded and ends in a special metal socket providing strain relief and kink protection based on the tried-and-tested NEUTRIK® NE8FF. For the intermediate long cable run we recommend the use of a network cable with, at least, one overall shield. You can cover distances of up to 150 meters if you use our first-rate CORDIAL CCAT 7A LONG RUN, featuring AWG size 23.
A very sophisticated solution for PA companies and event services in the “audio and video over IP” field to extend their potential scope of services with regard to utilizing high-grade network cable drums.
Product information
cable essentials cable 9
Jacket PVC
cable assign M3H
connector brand NEUTRIK ®
4 XLR male 3-pole
1 etherCON socket
technical data
Technical facts
Conductor area 0.15 mm²
Composition of conductor 19 x 0.10 mm
Conductor resistance 120 Ohm/km
Shielding Spiral shield
Capacity cond.-cond. (pF/m) 75 pF/m
category Multicore
diameter 3.5 ± 0.2 mm
Lenghts & colours
Colour Length Matchcode item no.
0.70 CDX 0.7 MN 3 QUAD-DMX 13477
