BLACKLIGHT-EDITION PR

Special
UV-reactive instrument cable with angled jack

Complete darkness. Colourful luminous figures dancing rhythmically to the beat, on stage a guitarist who makes the strings and hearts quiver.

The BLACKLIGHT EDITION from Cordial combines the usual outstanding inner values with a UV-reactive textile jacket that is particularly eye-catching in black light. Individual threads of UV-reactive material have been woven into the textile jacket for this purpose. In clubs or on stages, these fibres make the cables glow green or orange under black light. This makes for real eye-catchers in your stage arrangement.

The conductor area of the bulk cable is 0.50 mm² (AWG 21), twice as high as that of conventional woven cables. To minimise microphonic effects and to protect against external interference, it is double-shielded with a braid of bare copper wires on conductive plastic.

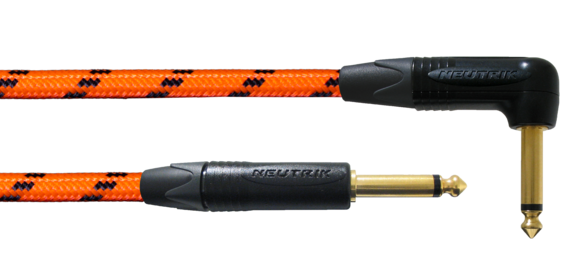

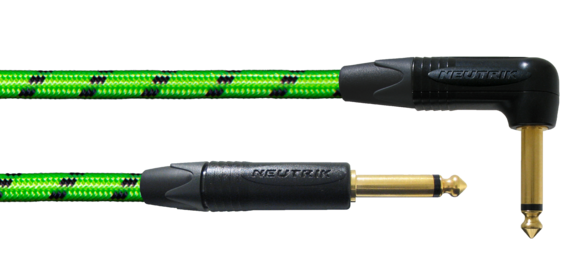

The PR version has a straight and an angled 6.35mm jack plug from NEUTRIK®. Also available with angled silentPLUG® as BLACKLIGHT-EDITION PR-SILENT [Link] or with straight jacks as BLACKLIGHT-EDITION PP.

Product information
cable CGK 150 UV
Jacket PVC black with UV-reactive cover-up (PET)
cable assign PR
connector brand NEUTRIK ®
plugs
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.50 mm²
AWG AWG 21
Composition of conductor 28 x 0.15 mm bare copper
Material PVC black with UV-reactive cover-up (PET)
Conductor resistance < 39 Ω / km
Shielding Braided copper screen + conductive plastic (minimizing microphonic effects)
Capacity cond.-cond. (pF/m) 88 pF / m ± 8 %
category Instrument
diameter 7,0 ± 0,2 mm
weight bulk cable 56,1 g / m
Conductor isolation TPE
Lenghts & colours
Colour Length Matchcode item no.
3.00 BLACKLIGHT-EDITION 3 PR-G 15222
6.00 BLACKLIGHT-EDITION 6 PR-G 15230
3.00 BLACKLIGHT-EDITION 3 PR-O 15224
6.00 BLACKLIGHT-EDITION 6 PR-O 15232
