Bal. Plug Connection
SELECT

CPM VV

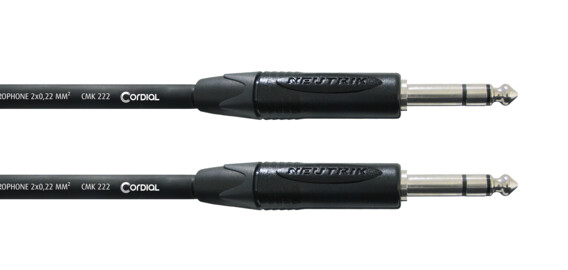

The stereo cable CPM VV is used for professional stage and studio operations to establish a stereo plug connection for monitors.

It means enhanced flexibility for event and studio technicians because they can route two independent signals to one speaker on the left and the other on the right. And, what is more, this cable has already achieved a legendary status as regards resilience and sturdiness.

Product information
cable CMK 222
cable assign VV
Brand NEUTRIK
plug
1 1/4" Plug stereo
1 1/4" Plug stereo
Specifications / Tender
Type Microphone cable
Part no. CMK 222

Mechanical data

Conductor area 0,22 mm²
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral wound copper wire screen
Overall jacket PVC
Overall diameter 6,4 ± 0,2 mm
Weight53  g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 66 mm
fixed ~ 33 mm
Electrical data
Conductor resistance <85 Ω / km
Capacity (cond./cond.) 55 pF / m
Capacity (cond./screen) 1110 pF / m
Test Voltage 750 V eff.
Product variants
Colour Part number
CPM 2.5 VV
CPM 5 VV
CPM 10 VV
