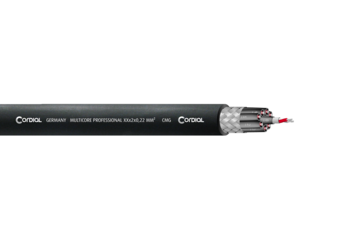

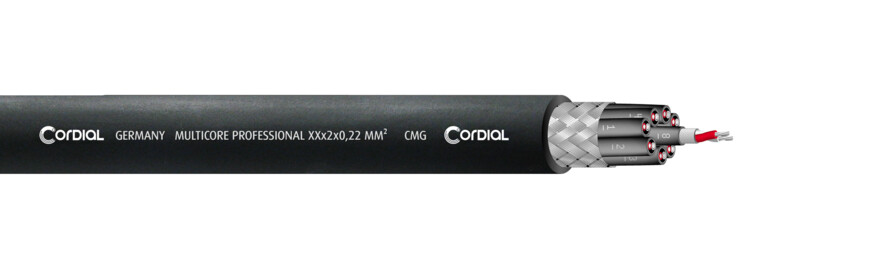

CMG 8

2, 4, 8, 10, 12, 16, 24, 32 channels

The enormously sturdy multicore CMG with 8 analog channels represents the optimal solution for challenging touring and festival applications as well as studio operations. Due to its tight, tinned Cu braiding, it efficiently prevents interferences and its specific mechanic design guarantees extreme durability. Thanks to the number coded PVC jacket of each pair, connectors can be assembled without additional shrink tubing.

Product information
Jacket PVC
technical data
Technical facts
Composition of cores 8 pairs twisted
Shielding tinned copper braided screen ( >85 % covering)
Pair screen spiral wound tinned copper screen ( >90% covering)
Isolation PE
Conductor area 0.22 mm²
AWG AWG 24
category Multicore
Composition of conductor 7 x 0.20 mm
Material tinned copper
Conductor resistance 87 Ω/km
diameter 13.0 ± 0.5 mm
Capacity cond.-cond. (pF/m) 53 pF/m
test voltage 500 V eff.
weight bulk cable 207 g/m
Lengths & colours
Colour Matchcode item no.
CMG 8 10830
