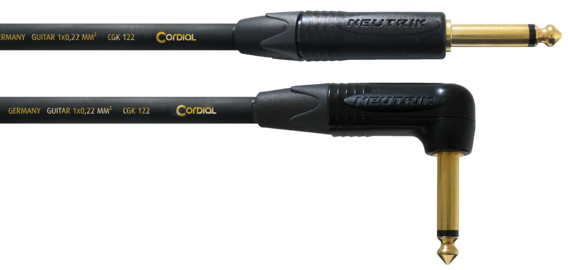

The PR version of our GOLD instrument cable features a one-sided angled plug. Both NEUTRIK® plugs are gold-plated and combined with our bulk cable CGK 122 can boast of very low capacity values thanks to triple shielding and a robust jacket.
Instrument
PEAK
CSI PR-GOLD
Product information
| cable | CGK 122 |
| cable assign | PP |
| Brand | NEUTRIK |
| plug |
1 1/4" Plug mono
1 1/4" Plug rectangular mono
|
Specifications / Tender
| Type | Instrument cable |
| Part no. | CGK 122 |
Mechanical data
| Conductor area | 0,22 mm² / AWG 24 |
| Composition of conductor | 7 x 0,20 mm tinned copper |
| Conductor isolation | foam skin PP |
| Composition of cores | coaxial composition |
| Screen | spiral wounded copper wire screen + 2x conductive plastic |
| Overall jacket | PVC |
| Overall diameter | 7,2 ± 0,2 mm |
| Weight | 57 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 74 mm |
| fixed | ~ 37 mm |
| Electrical data | |
| Conductor resistance | 87 Ω / km |
| Capacity (cond./cond.) | 82 pF / m ± 8 % |
Product variants
| Colour | Part number |
| CSI 3 PR-GOLD | |
| CSI 6 PR-GOLD | |
| CSI 9 PR-GOLD |
