Balanced Connection
elements

EM FV

New

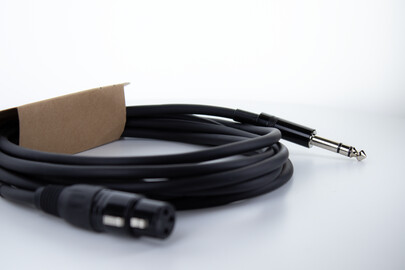

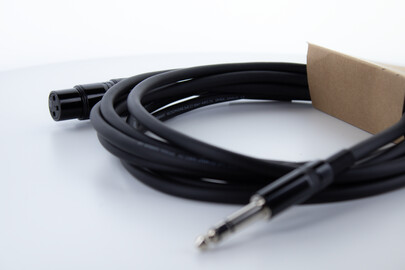

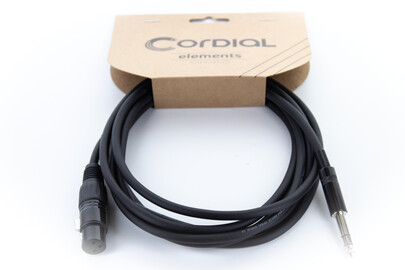

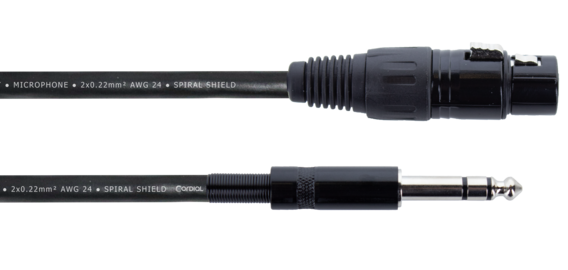

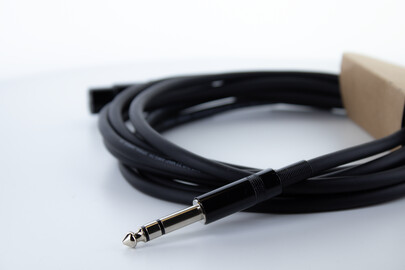

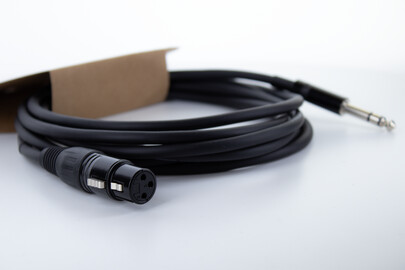

The EM FV is used to connect a microphone directly to a stereo input of, for example, a mixer or audio workstation. The robust XLR plug with nickel-plated contacts and molded bend protection combined with the metal stereo jack and a durable PVC jacket withstand even the toughest conditions. The transmission is balanced.

The conductor area of 2x 0.22 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure crystal-clear and unaltered signal transmission. The single-strand construction (28 x 0.10 mm) and the robust but flexible PVC sheathing compound ensure a particularly flexible XLR cable that is easy to wind.

Also available as EM MV with male XLR connector or as EM FP with a mono jack.

Product information
cable elements MIC 1
Jacket PVC
cable assign FV
connector brand -
plugs
1 XLR female 3-pole
1 1/4" Plug stereo
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 53 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Capacity cond.-cond. (pF/m) 58 pF/m
category Microphone
diameter 6.0 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
0.50 EM 0,5 FV 14819
1.00 EM 1 FV 14820
1.50 EM 1,5 FV 14821
3.00 EM 3 FV 14822
6.00 EM 6 FV 14823
