Loudspeaker

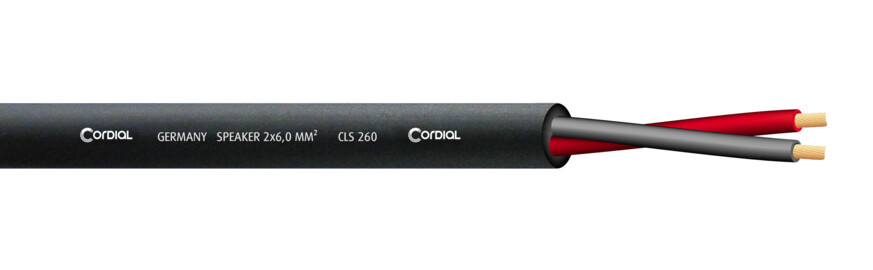

CLS 260

Loudspeaker Cable 6 mm² flex

If you’re an event technician and are looking for an extremely solid speaker installation cable for the transmission of high power loads without any signal loss over long distances, you can surely rely on our CLS 260 speaker bulk cable.

Thanks to its creative design, this cable is highly bendable and flexible despite its conductor size of 6 mm2.

The cable is also highly recommended for the use in home cinema and hi-fi environments.

Product information
Conductor area 6.00 mm²
AWG AWG 10
Composition of conductor 84 x 0.30
Material bare copper
Conductor resistance 3.3 Ohm/km
Shielding no screen
Capacity cond.-cond. (pF/m)
Specifications / Tender
Technical facts
Type Loudspeaker cable
Part no. CLS 260

Mechanical data

Conductor area 6,0 mm²
Composition of conductor 84 x 0,30 mm bare copper
Conductor isolation PVC
Composition of cores 2 cores
Screen no screen
Overall jacket PVC
Overall diameter 11,2 ± 0,3 mm
Weight 225 g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 115 mm
fixed ~ 57 mm
Electrical data
Conductor resistance 3,3 Ω / km
Test Voltage 2000 V eff.
Downloads
Product variants
Colour Part number
CLS 260 BLACK 100
CLS 260 BLACK 500
