Balanced Connection
elements

EM VK

New

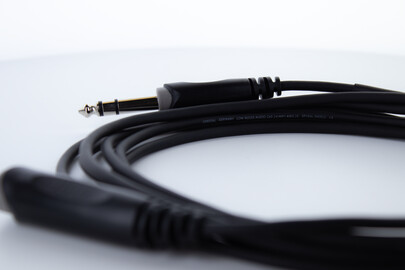

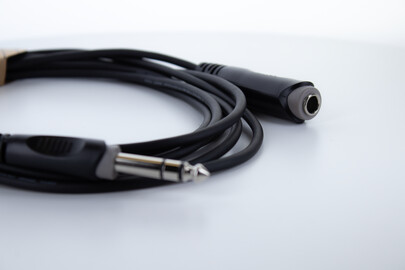

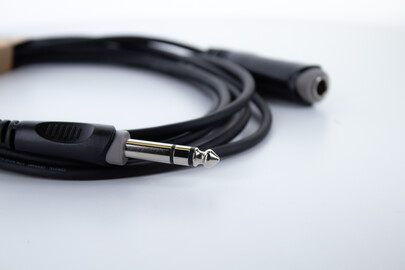

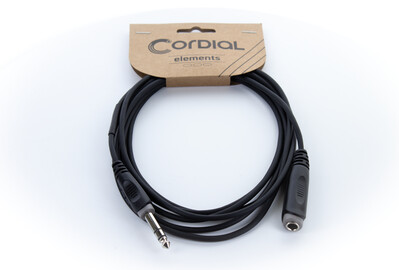

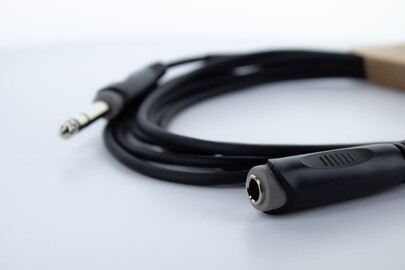

The EM VK is a balanced extension cable with 6.3 mm stereo jack and socket, used for example for headphone-extensions. The durable PVC-jacket withstands even the harder strains. The transmission is balanced.

The conductor area of 2x 0.14 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) protect against disturbing external influences. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC sheathing compound provide a particularly flexible stereo extension cable that is easy to wind.

Product information
cable elements MIC 2
Jacket PVC

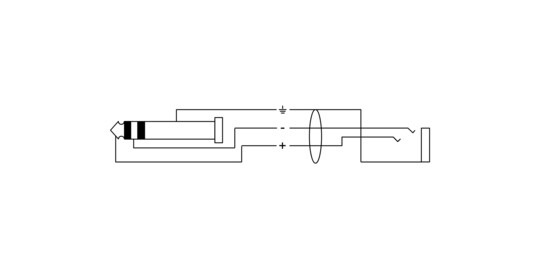

cable assign VK
connector brand -
plugs
1x 1/4" Plug stereo
1x 1/4" Socket stereo
technical data
Technical facts
Composition of cores 2 cores twisted
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Isolation PE
Conductor area 0.14 mm²
AWG AWG 26
category Microphone
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 140 Ohm/km
diameter 4.0 mm
Capacity cond.-cond. (pF/m) 35 pF/m
Lengths & colours
Colour Length Matchcode item no.
3.00 EM 3 VK 14824
5.00 EM 5 VK 14825
10.00 EM 10 VK 14826
