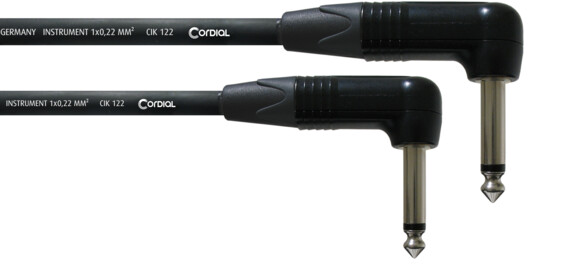

Our CPI RR features the same attributes as its two CPI siblings (CPI PP and CPI PR), but it is additionally equipped with 2 right angle plugs.

Product information
cable CIK 122
cable assign PP
1 1/4" Plug rectangular mono
1 1/4" Plug rectangular mono
Specifications / Tender
Type Instrument cable
Part no. CIK 122

Mechanical data

Conductor area 0,22 mm²
Composition of conductor 7 x 0,20 mm bare copper
Conductor isolation PE
Composition of cores coaxial composition
Screen spiral wounded copper wire screen + conductive plastic
Overall jacket PVC black, blue, green, red
Overall diameter 6,1 ± 0,2 mm
Weight 59 g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 63 mm
fixed ~ 31 mm
Electrical data
Conductor resistance 85 Ω / km
Capacity (cond./cond.) 130 pF / m ± 8 %
Test Voltage 1500 V eff.
Product variants
Colour Part number
CPI 0.15 RR
CPI 0.3 RR
