Generally speaking, the CPM FW-UNB is very much alike the CPM FW-BAL, but feature unbalanced connectors. A small but mighty tool, often used for the connection between mic and soundcard.
Microphone
SELECT

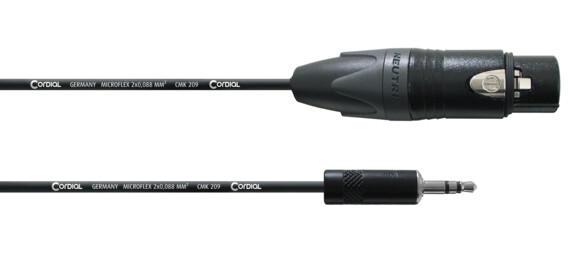

CPM FW-UNB
Product information
| cable | CMK 209 |
| cable assign | FW UNB |
| Brand | NEUTRIK |

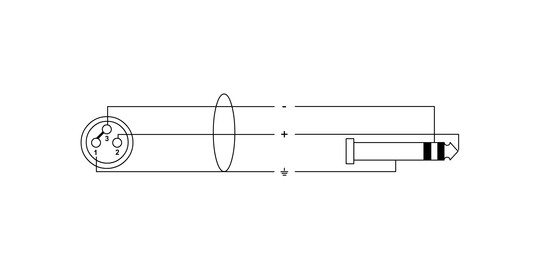

| plug |
1 XLR female 3-pole
1 1/8" Plug stereo
|
Specifications / Tender
| Type | Microphone cable |
| Part no. | CMK 209 |
Mechanical data
| Conductor area | 0,088 mm² |
| Composition of conductor | 7 x 0,127 mm bare copper |
| Conductor isolation | PP |
| Composition of cores | 2 cores twinned. Reinforced by two Aramid ("Kevlar") threads |
| Screen | spiral wound copper wire screen |
| Overall jacket | PVC |
| Overall diameter | 3 ± 0,2 mm |
| Weight | 13 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 30 mm |
| fixed | ~ 15 mm |
| Electrical data | |
| Conductor resistance | < 217 Ω / km |
| Capacity (cond./cond.) | 54 pF / m ± 8 % |
| Capacity (cond./screen) | 90 pF / m ± 8 % |
| Test Voltage | 500 V eff. |
Product variants
| Colour | Part number |
| CPM 1.5 FW-UNB | |
| CPM 3 FW-UNB |
