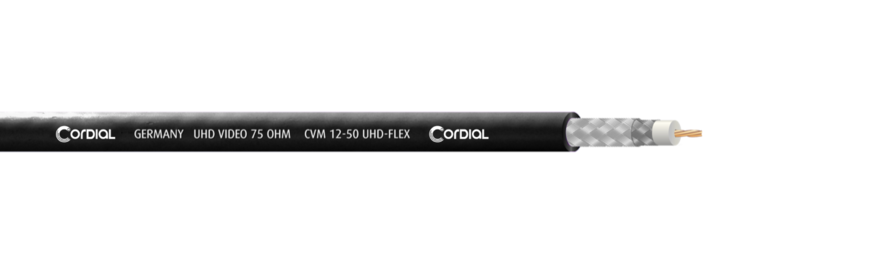

CVM 12-50 UHD-FLEX

Our efficient and highly flexible video cable CVM 12-50 UHD-FLEX is especially suitable for transmitting video signals over longer distances. Two superimposed braided shields with more than a 90% coverage each effectively screen the cable interior and also ensure the high flexibility of the cable.



Cable Type: CVM 12-50
Recommended Connector Technical Data Sheet: NEUTRIK® Connector NBNC75BXU13X

Product information
Jacket PVC flex
technical data
Technical facts
Conductor area 0.89 mm²
Composition of cores coaxial composition
AWG AWG 18
Shielding 2x tinned copper braided screen (2x 90% coverage)
Composition of conductor 7 x 0.40 mm
Material bare copper
Conductor isolation Cell PE
Conductor resistance 19 Ohm/km // 9 Ohm/km
Capacity cond.-cond. (pF/m) 55 pF/m
Category UHD-Video
weight bulk cable 81 g/m
diameter 7.0 +/- 0.2 mm
Downloads
Lengths & colours
Colour Matchcode item no.
CVM 12-50 UHD-FLEX-BLACK 100 15744
CVM 12-50 UHD-FLEX-BLACK 500 15745
