Balanced Connection
elements

ES WWR

New

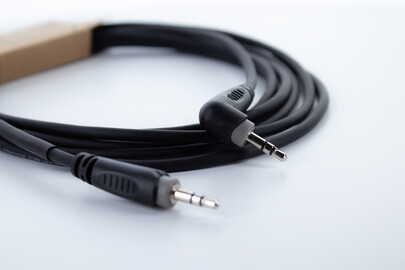

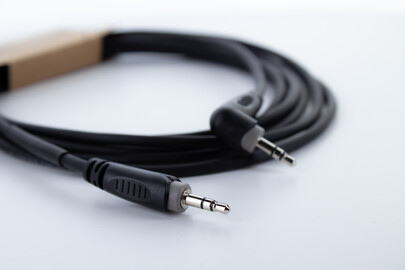

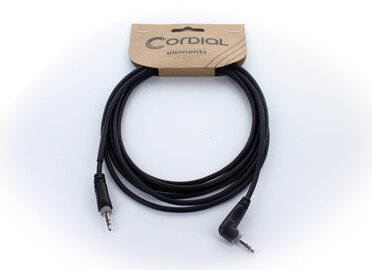

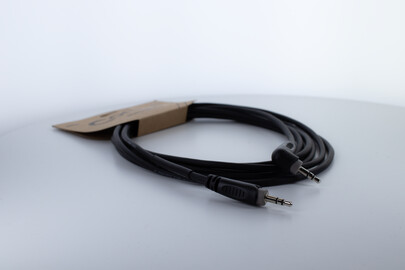

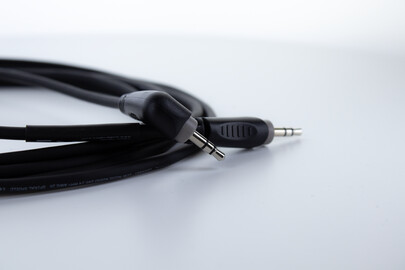

The ES WWR is used for balanced transmission of stereo signals, for example from a laptop to the stereo jack input of a recording device. One mini jack is right-angled for easier handling.

The conductor area of 2x 0.14 mm² and shielding of twisted copper strands (95% coverage) ensure unaltered signal transmission. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC sheathing compound ensure good wind ability and durability. The two 3.5 mm stereo jacks (1x straight, 1x right-angled) protect their soldering points with splash bend protection sleeves and thus allow high mating cycles.

Also available with two straight mini stereo jacks as ES WW.

Product information
cable elements MIC 2
Jacket PVC

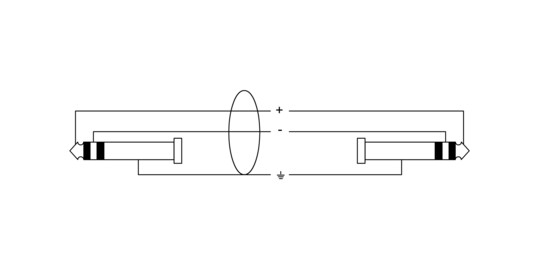

cable assign WWR
connector brand -

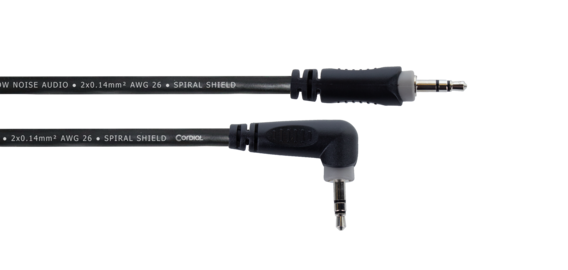

plugs
1x 1/8" Plug stereo
1x 1/8" Plug stereo rectangular
technical data
Technical facts
Composition of cores 2 cores twisted
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Isolation PE
Conductor area 0.14 mm²
AWG AWG 26
category Microphone
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 140 Ohm/km
diameter 4.0 mm
Capacity cond.-cond. (pF/m) 35 pF/m
Lengths & colours
Colour Length Matchcode item no.
0.50 ES 0,5 WWR 14831
1.00 ES 1 WWR 14923
1.50 ES 1,5 WWR 14832
3.00 ES 3 WWR 14833
