Microphone
SELECT

CPM FM 234 SD

New
Microphone cable drum with low resistance

The drummed microphone cable CPM FM 234 SD is especially designed for highly professional rental companies as well as event and sound engineers. The robust XLR connectors of the quality brand NEUTRIK® provides permanent safety on stage.

During the development of the CMK 234 bulk cable, a special focus was put on making the product suitable for long distances without restrictions and making it also very flexible. This task was achieved by a larger conductor area of 0.34 mm² and the flexible composition of conductors of 26 individual strands.

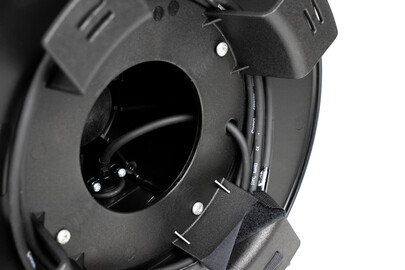

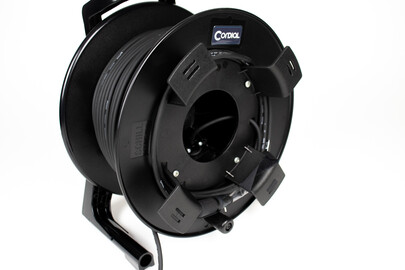

This gives the CPM FM 234 SD a particularly low conductor resistance, making the CPM FM 234 the ultimate microphone cable for large events. It is reeled on a robust SCHILL® 310 GT drum with 2m auxiliary spool.

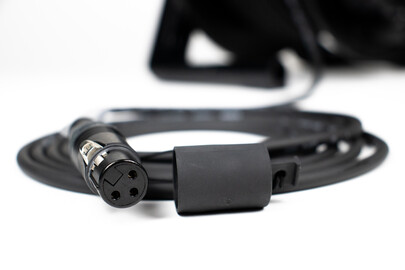

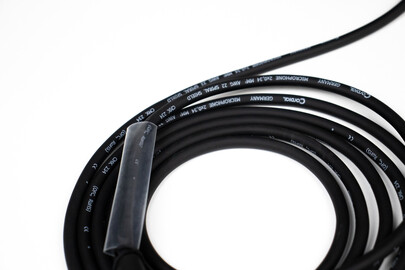

Transparent heat shrink tubes at both cable ends for individual labelling.

Shorter versions without a drum are available as well (CPM FM 234)

Product information
cable CMK 234
Jacket PVC
cable assign FM
connector brand NEUTRIK ®
plugs
1 XLR female 3-pole
1 XLR male 3-pole
Specifications
Technical facts
Conductor area 0.34 mm²
AWG AWG 22
Composition of conductor 26 x 0.127 mm
Material bare copper
Conductor resistance 58 Ohm/km
Shielding Spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 60 pF/m
category Microphone
diameter 6.2 mm
weight 53 g/m
Conductor isolation PE
Product variants
Colour item no. Matchcode Length
14640 CPM 50 FM 234 SD 50.00
14641 CPM 75 FM 234 SD 75.00
14642 CPM 100 FM 234 SD 100.00
