Instrument
PEAK

CSI RP-SILENT

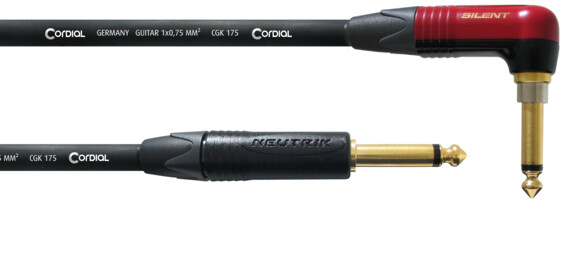

The CSI RP Silent has all the advantages of the CSI PP Silent but features a right-angled silent plug.



* Please bear in mind: Do not plug SILENT-Plug into amplifier output / Not effective when tip-ring-sleeve jacks activate power supply

Product information
cable CGK 175
cable assign PP
Brand NEUTRIK
plug
1 1/4" Plug rectangular mono SILENT
1 1/4" Plug mono
Specifications / Tender
Type Instrument cable
Part no. CGK 175

Mechanical data

Conductor area 0,75 mm²
Composition of conductor 42 x 0.15 mm bare copper
Conductor isolation TPE
Composition of cores coaxial composition
Screen braided copper screen + conductive plastic
Overall jacket PVC
Overall diameter 7,2 ± 0,2 mm
Weight 60 g/m
Working temperature
mobile (-5 °C) - (+70 °C)
fixed (-20 °C) - (+70 °C)
min.Bending radius
mobile ~ 74 mm
fixed ~ 37 mm
Electrical data
Conductor resistance <25,5 Ω / km
Capacity (cond./cond.) 88 pF / m ± 8 %
Test Voltage 500 V eff.
Product variants
Colour Part number
CSI 3 RP-SILENT
CSI 6 RP-SILENT
CSI 9 RP-SILENT
