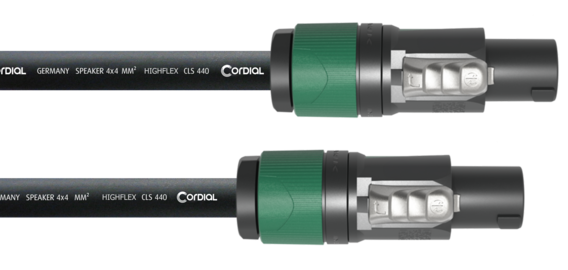

HIGHFLEX Speaker cable with 4x4mm² pure ofc copper and NEUTRIK NL4 connectors.
SELECT
CPL LL 44
New
Product information
| cable | CLS 440 |
| cable assign | LL4 |
| Brand | NEUTRIK |
| plug |
1 Speakon 4-pole
1 Speakon 4-pole
|
Specifications
| Type | loudspeaker cable multicore |

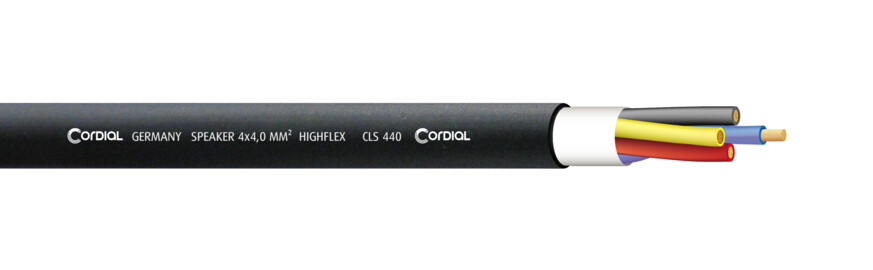

| Part no. | CLS 440 |
Mechanical data
| Conductor area | 4,0 mm² |
| Composition of conductor | 225 x 0,15 mm bare copper |
| Conductor isolation | PVC |
| Composition of cores | 4 cores |
| Screen | no screen |
| Overall jacket | PVC |
| Overall diameter | 12,0 ± 0,4 mm |
| Weight | 270 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 124 mm |
| fixed | ~ 62 mm |
| Electrical data | |
| Conductor resistance | 4,95 Ω / km |
| Test Voltage | 2000 V eff. |
Product variants
| Colour | Part number |
| CPL 2,5 LL 44 | |
| CPL 5 LL 44 | |
| CPL 10 LL 44 | |
| CPL 15 LL 44 | |
| CPL 20 LL 44 |
