Unbalanced Connection
select

CPM FP

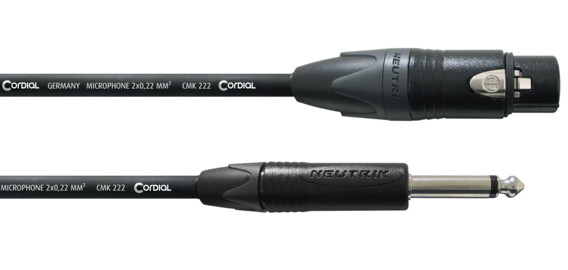

The CPM FP adapter cable (XLR female to mono plug) is often used for dynamic mics and for studio signal flows but can also serve as an ideal patch cable.

All in all, an extremely sturdy top-notch cable for any eventuality, for tough stage use as well as in the studio.

Product information
cable
Jacket PVC
cable assign FP
connector brand NEUTRIK ®
plugs
1x XLR female 3-pole
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 85 Ohm/km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 55 pF/m
category Microphone
diameter 6.4 mm
weight bulk cable 53 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
2.50 CPM 2.5 FP 11030
5.00 CPM 5 FP 11049
7.50 CPM 7.5 FP 11060
10.00 CPM 10 FP 11021
