CFCA FCB-TRUE 1

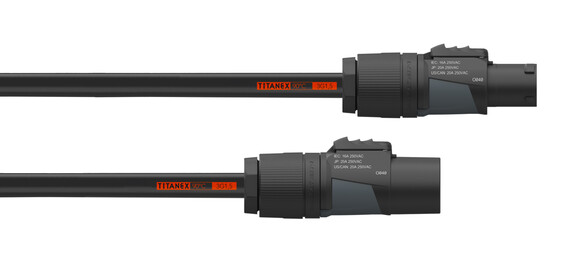

3 x 1.50 mm² powerCON® TRUE1®TOP power/extension cord with Titanex® bulk cable

Event technicians in particular are all too often faced with the problem of adverse weather conditions. The power supply for festivals, music and cinema open airs or outdoor theatre events and company events outdoors must be as waterproof as possible. Cordial offers the CFCA FCB-TRUE 1 as a solution.

Thanks to the 3x 1.50 mm² conductor area and the robust, three-pole NEUTRIK® powerCON® NAC3FX-W-TOP & NAC3MX-W-TOP plugs with locking mechanism, a current carrying capacity of up to 16 A is achieved and waterproofing to IP65 standard is ensured.

  • 3 x 1.50 mm² conductor area
  • Titanex® bulk cable
  • Bulk cable oil-resistant and flame-retardant according to IEC/EN 60332-1-2
  • Certified quality product according to VDE directive
  • Transparent shrink tubes for cable marking
  • Current carrying capacity up to 16A
  • Can be plugged in under load
  • NEUTRIK® quality plugs according to IEC 60320, UL50E, UL498, VDE, ENEC standards
  • Protection for outdoor applications: IP65 when plugged in
icon
PowerCON TRUE 1 TOP

Attention: Safe operation until 250V~ 16A. powerCON®TRUE1®TOP is equipped with breaking capacity (CBC), i.e. it can be connected or disconnected under voltage and load.

For safety reasons, please note the technical data as well general operating and safety instructions.

Product information
cable H07RN-F 3G1,5 TITANEX®
Jacket Specially crosslinked elastomer (rubber)
cable assign FCAFCB
connector brand NEUTRIK ®
plugs
1x powerCON®TRUE1®TOP female (NAC3FX-W-TOP)
1x powerCON®TRUE1®TOP male (NAC3MX-W-TOP)
technical data
Conductor area 3x 1.50 mm²
AWG AWG 16
category Power
diameter 10.5 ± 1.5 mm
weight bulk cable ca. 134 g/m
Downloads
Lenghts & colours
Colour Length Matchcode item no.
1.50 CFCA 1.5 FCB-TRUE 1 12761
3.00 CFCA 3 FCB-TRUE 1 12609
5.00 CFCA 5 FCB-TRUE 1 12611
10.00 CFCA 10 FCB-TRUE 1 12607
robust power cables from Cordial
