CFD DMT

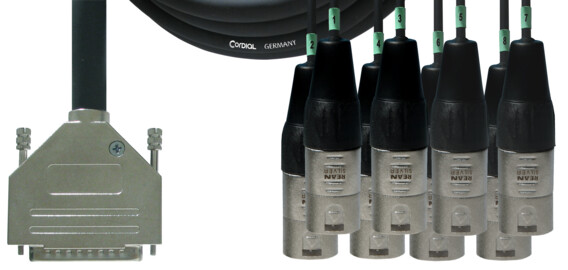

Our CCD DMT is a high-grade multicore cable for professional studio and LIVE applications. Its pin configuration conforms with the analog Tascam DSUB 25 specification (DA 88) and features 25-pin D-Sub male to 8x 3-pin XLR male nickel-plated metal connectors. The corresponding bulk cable is CORDIAL’s CMD 8, which transmits analog as well as DMX signals excellently and features a tinned braided shield and spiral wound tinned copper pair screens.

Product information
cable CMD 8
cable assign DMT
Brand REAN SILVER
plug
1 D-Sub
8 XLR male 3-pole
Specifications / Tender
Type Digital Audio Multicore
Part no. CMD 8

Mechanical data

Conductor area 0,14 mm²
Composition of conductor 18 x 0,10 mm tinned copper
Conductor isolation PE
Composition of cores 8 twisted pairs
Screen tinned copper braided screen
Overall jacket PVC
Overall diameter 12,5 ± 0,5 mm
Weight 178 g/m
Working temperature
mobile (-15 °C) - (+60 °C)
fixed (-25 °C) - (+80 °C)
min.Bending radius
mobile ~ 125 mm
fixed ~ 62 mm
Electrical data
Conductor resistance 140 Ω / km
Capacity (cond./cond.) 45 pF / m
Capacity (cond./screen) 87 pF / m
Characteristic impedance 110 Ω / m
Test Voltage 500 V eff.
Product variants
Colour Part number
CFD 1.5 DMT
CFD 3 DMT
CFD 5 DMT
