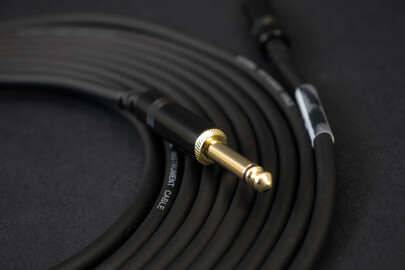

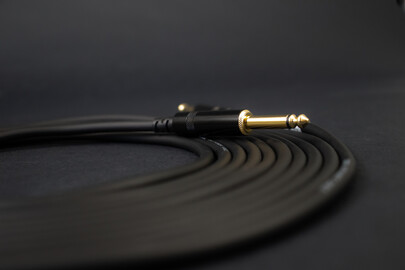

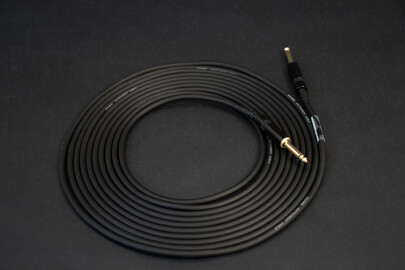

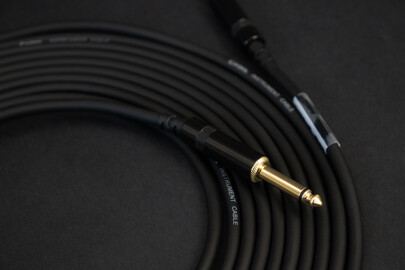

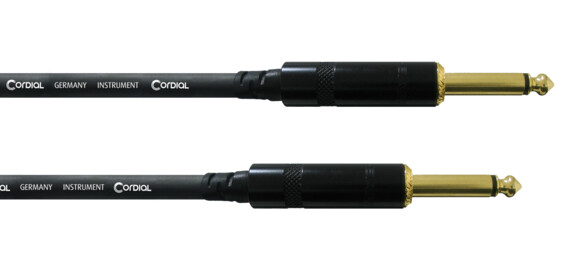

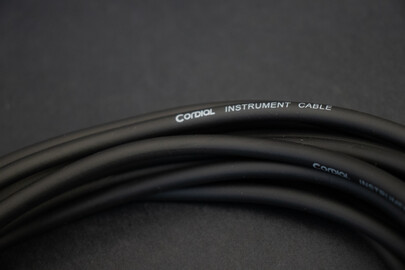

This capacity-optimized bulk cable is especially suited for guitars, bass guitars and electronic instruments. Significant is that the hand soldered, gold-plated metal connectors with sprayed-on kink protection can easily be opened if required.
This capacity-optimized bulk cable is especially suited for guitars, bass guitars and electronic instruments. Significant is that the hand soldered, gold-plated metal connectors with sprayed-on kink protection can easily be opened if required.
cable | essentials cable 5 | |
Jacket | PVC | |
cable assign | PP | |
connector brand | REAN ® | |
plugs |
1x 1/4" Plug mono
1x 1/4" Plug mono
|
Conductor area | 0.22 mm² |
AWG | AWG 24 |
Composition of conductor | 7 x 0.20 mm |
Conductor resistance | 80 Ohm/km |
Shielding | spiral shield |
Capacity cond.-cond. (pF/m) | 140 pF/m |
category | Instrument |
diameter | 5.9 ± 0.2 mm |
Colour | Length | Matchcode | item no. |
0.30 | CCI 0.3 PP | 10400 | |
0.60 | CCI 0.6 PP | 10401 | |
0.90 | CCI 0.9 PP | 10402 | |
1.50 | CCI 1.5 PP | 10403 | |
3.00 | CCI 3 PP | 10404 | |
4.50 | CCI 4.5 PP | 14599 | |
6.00 | CCI 6 PP | 10406 | |
9.00 | CCI 9 PP | 10408 |
