Y-Adapter
ESSENTIALS

CFY WGG

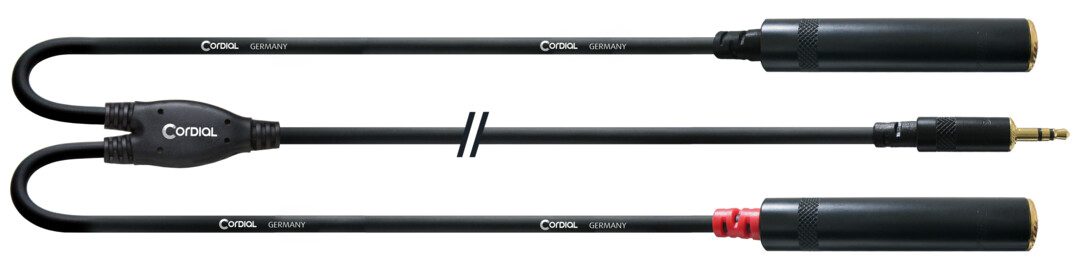

The 1x 3.5 mm stereo mini jack plug to 2x mono jack socket 6.3 mm adapter cable CFY WGG should never be missing in any studio or from any event toolbox. The hand soldered REAN made by Neutrik®mono jack plugs feature a red respectively a black left/right marking. The contacts are gold plated to protect against corrosion and the cross section of the adapter cable is 2x 0.22mm².

The CFY WGG is used, for example, to connect E-drums to a PA.

Approx. 15 cm split.

Product information
cable essentials cable 2
Jacket PVC
cable assign WGG
connector brand REAN ®
plugs
1 1/8" Plug stereo
2 1/4" Plug Socket mono
Specifications
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Conductor resistance 80 Ohm/km
Shielding spiral shield
Capacity cond.-cond. (pF/m) 80 pF/m
category Microphone
diameter 4.3 mm | 1.69 in
Product variants
Colour Part number Length
CFY 0.3 WGG 0.30
