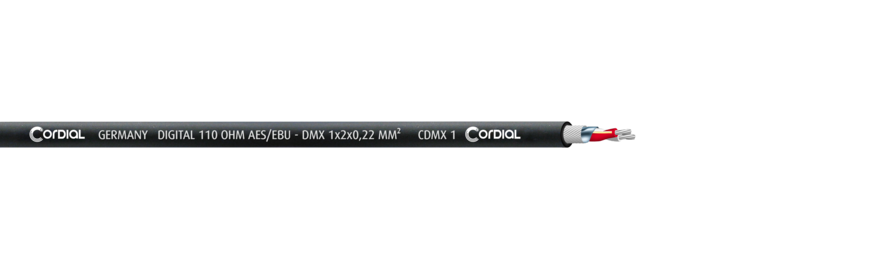

Our CDMX 1 is a rather slim, but nonetheless highly resilient data cable, suited for stage applications and permanent installations alike. Thanks to its combined aluminum foil shield and a spiral copper screen which protect the cable all around, the cable is highly interference-proof. The CDMX 1 copes effortlessly with the transmission of digital signals in 110 Ω AES/EBU and DMX data format over long distances and allows a 3-pin configuration.
DMX-AES/EBU-110 Ohm
CDMX 1
Digital Control Cable
Product information
| Conductor area | 0.22 mm² |
| AWG | AWG 24 |
| Composition of conductor | 7 x 0.20 |
| Material | tinned copper |
| Conductor resistance | 95 Ohm/km |
| Shielding | Spiral wound copper / Aluminum fleece |
| Capacity cond.-cond. (pF/m) | 42 pF/m |
Specifications / Tender
Technical facts
| Type | DMX / Digital control cable |
| Part no. | CDMX 1 |
Mechanical data
| Conductor area | 0,22 mm² (AWG 24) |
| Composition of conductor | 7 x 0,20 mm tinned copper |
| Conductor isolation | PE |
| Composition of cores | 1 pair twisted |
| Screen | Spiral wound tinned copper wire + AL fleece foil |
| Pair Screen | - |
| Overall jacket | PVC |
| Overall diameter | 4,5 ± 0,2 mm |
| Weight | 30 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+80 °C) |
| min.Bending radius | |
| mobile | ~ 47 mm |
| fixed | ~ 23 mm |
| Electrical data | |
| Conductor resistance | 95 Ω / km |
| Capacity (cond./cond.) | 42 pF / m |
| Capacity (cond./screen) | 90 pF / m |
| Characteristic impedance | 110 Ω |
| Test voltage | 500 V eff. |
Downloads
Product variants
| Colour | Part number |
| CDMX 1 BLACK 100 | |
| CDMX 1 BLACK 500 |
