Bal. Plug Connection

SELECT

CPM MV

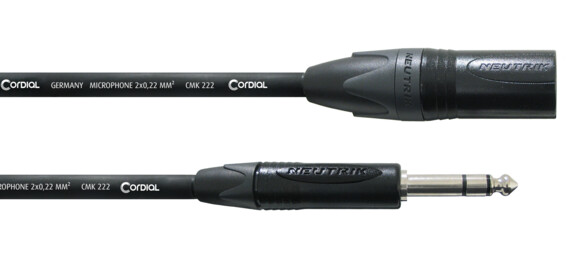

The CPM MV, featuring an XLR male and a balanced jack plug is mostly used for mic and line signals and is extremely consistent and reliable.

It can be used as a connection between active speaker and mixing desk. Cordial's bulk cable CMK 222 in combination with robust NEUTRIK connectors will survive even the toughest challenges on stage.

Product information

cable	CMK 222	view bulk cable
Jacket	PVC
cable assign	MV
connector brand	NEUTRIK ®
plugs	1 XLR male 3-pole 1 1/4" Plug stereo

Specifications

Technical facts

cmk-222.pdf

Conductor area	0.22 mm²
AWG	AWG 24
Composition of conductor	28 x 0.10 mm
Material	bare copper
Conductor resistance	85 Ohm/km
Shielding	spiral wound copper wire screen
Capacity cond.-cond. (pF/m)	55 pF/m
category	Microphone
diameter	6.4 mm
weight	53 g/m
Conductor isolation	PE

Product variants

Colour	item no.	Matchcode	Length
	11033	CPM 2.5 MV	2.50
	11053	CPM 5 MV	5.00
	11024	CPM 10 MV	10.00

Our classic in various versions

The microphone cable: CPM

Whether for the stage, studio or rehearsal room: reliable microphone cables with good shielding and a robust jacket are an important part of daily work. Cordial has therefore created a family of microphone cables that meets those requirements. Our basis: The bulk cable CMK 222 with a composition of conductors of 28 x 0.10 mm oxigen-free copper (OFC) stains and a conductor area of 0.22 mm² each, protected by a pair shield (bare copper spiral shield, coverage approx. 95%) and sheathed by a robust but flexible PVC jacket.
All CPM cables are easy to be reeled, lie neatly without forming loops and withstand typical stage loads. The perfect solution for live performers and stage equipment rental companies.
