Instrument
elements

EI PP-TWEED-RD

New

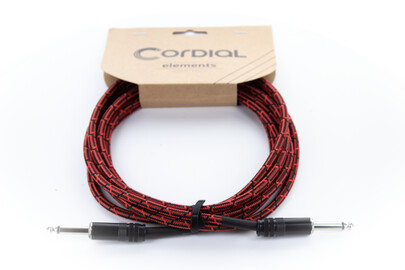

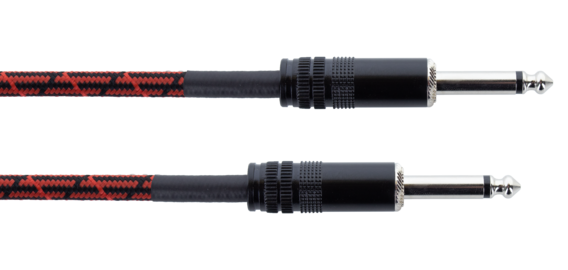

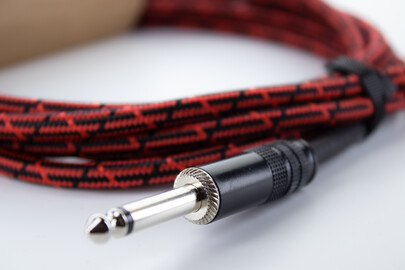

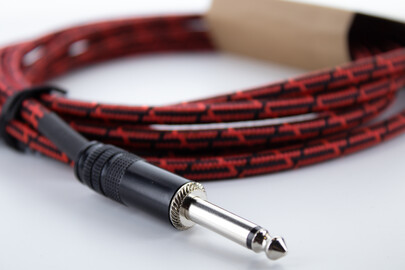

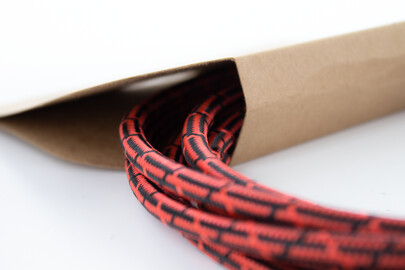

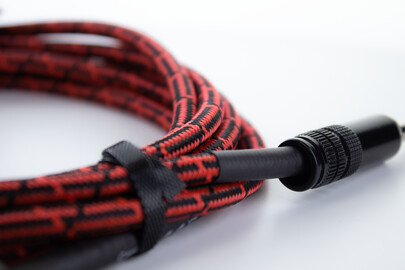

The EI PP-TWEED-RD is an instrument cable for those who burn for music. It combines a fiery textile jacket of red and black with carbon black 6.3 mm jack plugs and nickel-plated contacts. The conductor area of 0.22 mm² and a double shielding of spiral shielding and conductive plastic transport even the most burning riffs to their destination unadulterated and boiling hot. Due to the single strand construction (28 x 0.10 mm), the robust but bendable PVC mixture, and the flame red textile jacket, it is especially flexible and can be wound easily - Attention: Do not burn your hands.

Also available with a right-angle plug as EI PR-TWEED-RD.

Product information
cable elements INS 5
Jacket Textile
cable assign PP
connector brand -
plugs
1x 1/4" Plug mono
1x 1/4" Plug mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 90 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage) + conductive plastic
Capacity cond.-cond. (pF/m) < 85 pF/m
category Instrument
diameter 6.5 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 EI 1,5 PP-TWEED-RD 14772
3.00 EI 3 PP-TWEED-RD 14773
5.00 EI 5 PP-TWEED-RD 15002
7.50 EI 7,5 PP-TWEED-RD 14774
