Digital Interface
ESSENTIALS

CFD DDT

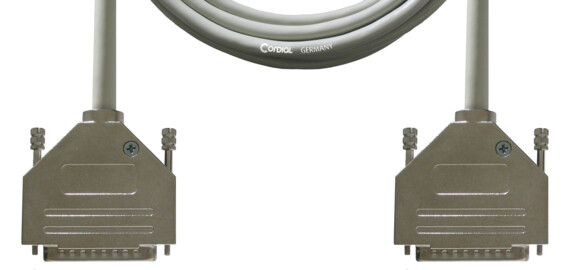

Our CFD DDT is a professional digital multicore cable for LIVE and studio use to connect to devices with Tascam TDIF configuration. The pin configuration complies with the Tascam D-Sub 25 specification, i.e. D-Sub 25 pin male connectors. Both feature a nickel-plated metal housing.

The cable interior is shielded by a flexible tinned braid screen.

Product information
Jacket PVC
cable assign DDT
connector brand -
plugs
1 D-Sub
1 D-Sub
Specifications
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Conductor resistance 134 Ohm/km
Shielding tinned copper braided screen
Capacity cond.-cond. (pF/m) 120 nF/km
additional description Tascam to Tascam
category Digital Interface
diameter 9.00 mm
weight 13 g/m
Product variants
Colour Part number Length
CFD 1.5 DDT 1.50
CFD 3 DDT 3.00
CFD 5 DDT 5.00
