Balanced Connection
elements

EM MV

New

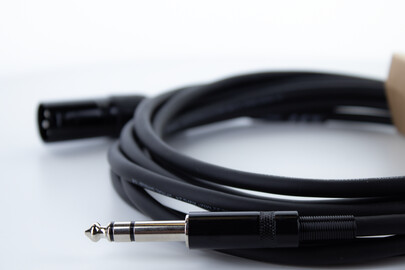

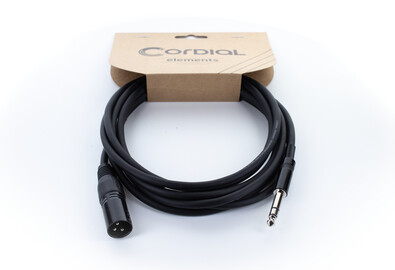

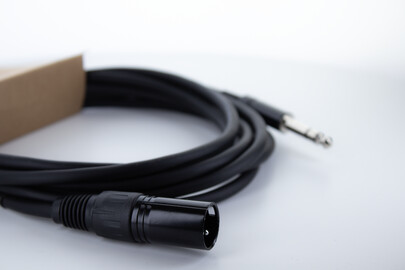

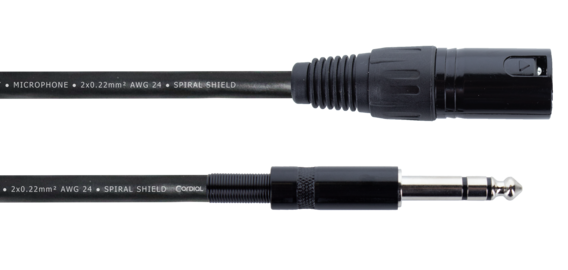

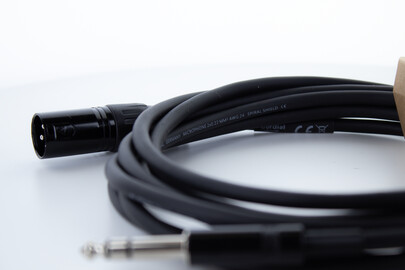

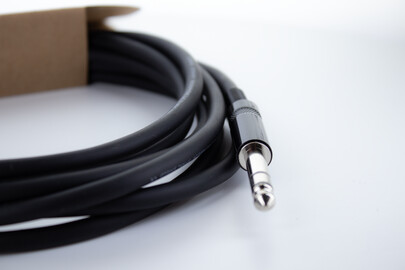

The EM MV is used for the balanced transmission of balanced audio signals (drum machines, interfaces, audio workstations) to XLR inputs (e.g. monitor boxes, mixing consoles). The robust XLR male connector with nickel-plated contacts and molded bend protection combined with the metal stereo jack and a durable PVC jacket withstand even the toughest conditions. The transmission is balanced.

The conductor area of 2x 0.22 mm² and shielding of twisted copper strands (spiral shielding, 95% coverage) ensure crystal-clear and unaltered signal transmission. The single-strand construction (28 x 0.10 mm) and the robust but flexible PVC sheathing compound ensure a particularly flexible XLR cable that is easy to wind.

Also available as EM FV with female XLR connector or as EM MP with a mono jack.

Product information
cable elements MIC 1
Jacket PVC
cable assign MV
connector brand -
plugs
1x XLR male 3-pole
1x 1/4" Plug stereo
technical data
Technical facts
Composition of cores 2 cores twisted
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
page.productDetail.information.conductor isolation PE
Conductor area 0.22 mm²
AWG AWG 24
category Microphone
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 80 Ohm/km
diameter 6.0 mm
Capacity cond.-cond. (pF/m) 58 pF/m
Lenghts & colours
Colour Length Matchcode item no.
0.50 EM 0,5 MV 14809
1.00 EM 1 MV 14810
1.50 EM 1,5 MV 14811
3.00 EM 3 MV 14812
6.00 EM 6 MV 14813
