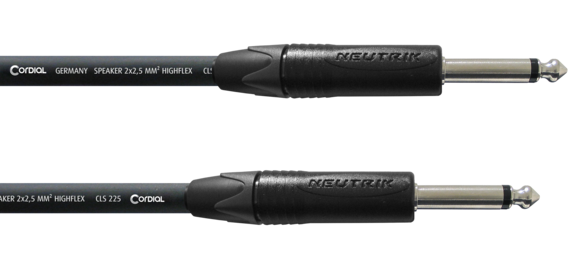

The CPL PP 25 speaker cable is quite similar to the aforementioned CPL PP, but features a bulk cable version with 2.5mm2 conductor size.
Loudspeaker
SELECT
CPL PP 25
Product information
| cable | CLS 225 |
| cable assign | PP |
| Brand | NEUTRIK |
| plug |
1 1/4" Plug mono
1 1/4" Plug mono
|
Specifications / Tender
| Type | Loudspeaker cable |
| Part no. | CLS 225 |
Mechanical data
| Conductor area | 2,5 mm² |
| Composition of conductor | 140 x 0,15 mm bare copper |
| Conductor isolation | PVC |
| Composition of cores | 2 cores |
| Screen | no screen |
| Overall jacket | PVC |
| Overall diameter | 7,8 ± 0,25 mm |
| Weight | 105 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 80 mm |
| fixed | ~ 40 mm |
| Thermal load | 0,31 kWh / m (~1,1 MJ / m) |
| Electrical data | |
| Conductor resistance | 8 Ω / km |
| Test Voltage | 2000 V eff. |
Product variants
| Colour | Part number |
| CPL 1.5 PP 25 | |
| CPL 10 PP 25 | |
| CPL 20 PP 25 |
