Y-Adapter
elements

EY WRCC

New

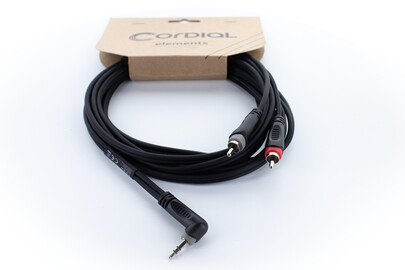

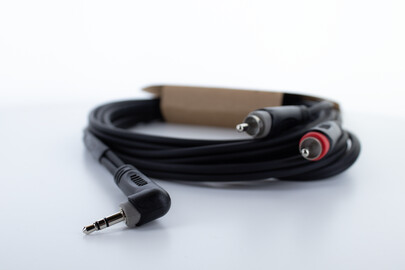

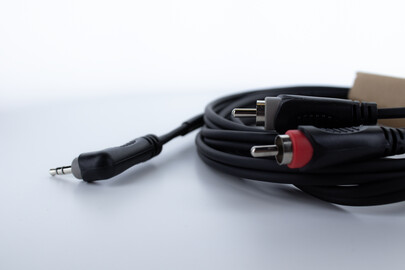

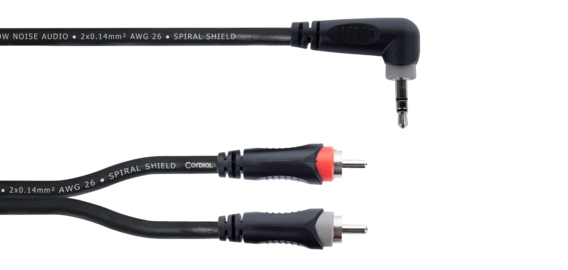

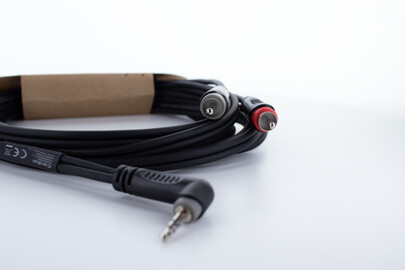

The EY WRCC is a Y-adapter from 1x 3.5 mm right angle mini-jack (stereo) to 2x RCA cinch for splitting stereo audio signals into two channels. The molded bend protection ensures long durability and high mating cycles.

The conductor area of 0.14 mm² and a spiral shielding protect your signals from external interference. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC jacket compound make it particularly flexible.

Product information
cable elements MIC 2 twin
Jacket PVC

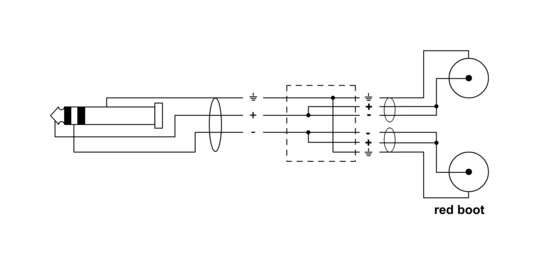

cable assign WRCC
connector brand -
plugs
1x 1/8" Plug stereo rectangular
2x Cinch-RCA
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 125 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 90% coverage)
Capacity cond.-cond. (pF/m) 250 pF/m
category Microphone
diameter 4 x 8 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.00 EY 1 WRCC 14858
1.50 EY 1,5 WRCC 14859
3.00 EY 3 WRCC 14860
5.00 EY 5 WRCC 14861
