Bal. Plug Connection
essentials

CFM MV

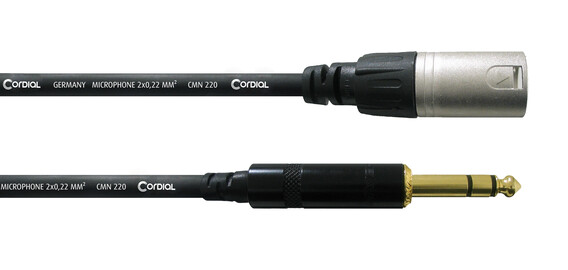

XLR male to stereo jack

The CFM MV is a balanced cable, for example, for connecting stereo signals to microphone inputs or for quick wiring of studio monitors. The two hand-soldered REAN® by NEUTRIK® connectors are protected from damage by a moulded bend protection sleeve. The XLR male is nickel-plated, the 6.35 mm stereo jack is gold-plated and thus protected against corrosion.

The used bulk cable CME 220 with a conductor area of 0.22 mm² consisting of 28 x 0.10 mm strands of high-purity copper ensures undistorted signal transmission. A spiral shield protects against external interference and prevents noise from power supply units or power lines.

Also available with XLR female as CFM FV.

Product information
cable
Jacket PVC
cable assign MV
connector brand REAN ®
plugs
1x XLR male 3-pole
1x 1/4" Plug stereo
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance 85 Ohm/km
Shielding spiral wound copper wire screen
Capacity cond.-cond. (pF/m) 95 pF/m
category Microphone
diameter 5.8 mm
weight bulk cable 47 g/m
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
0.30 CFM 0.3 MV 10534
0.60 CFM 0.6 MV 10539
1.50 CFM 1.5 MV 10547
3.00 CFM 3 MV 10558
6.00 CFM 6 MV 10568
9.00 CFM 9 MV 10574
