Instrument
elements

EI PR-TWEED-BL

New

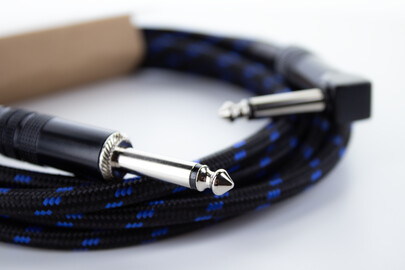

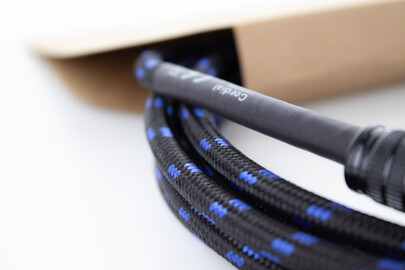

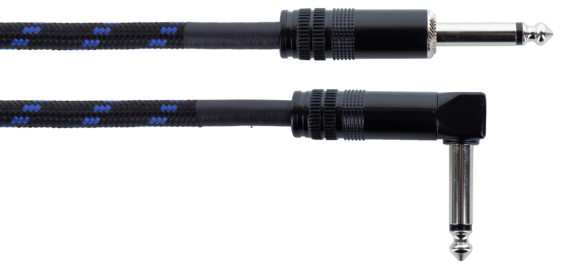

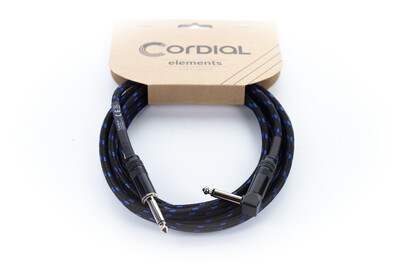

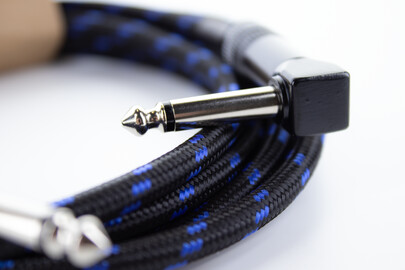

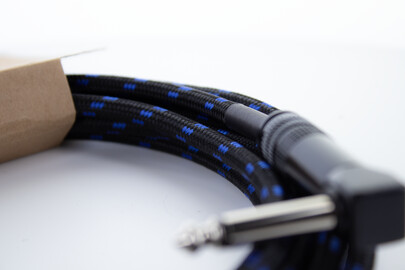

The EI PR-TWEED-BL is an instrument cable with one right-angle plug for style conscious musicians. Visually, it impresses by its combination of a modest, black/blue textile jacket and black 6.3 mm plugs (1x straight, 1x right-angled) with nickel-plated contacts. Its 0.22 mm² conductor area and a double shielding of spiral shielding and conductive plastic transport even the hardest riffs without hearable modification. Due to the single-strand construction (28 x 0.10 mm), the robust but flexible PVC compound and its fine textile jacket, the cable is particularly flexible and easy to be wound.

Also available with two straight handles as EI PP-TWEED-BL.

Product information
cable elements INS 4
Jacket Textile
cable assign PR
connector brand -
plugs
1x 1/4" Plug mono
1x 1/4" Plug right angle mono
technical data
Technical facts
Conductor area 0.22 mm²
AWG AWG 24
Composition of conductor 28 x 0.10 mm
Material bare copper
Conductor resistance < 90 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage) + conductive plastic
Capacity cond.-cond. (pF/m) < 85 pF/m
category Instrument
diameter 6.5 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
1.50 EI 1,5 PR-TWEED-BL 14779
3.00 EI 3 PR-TWEED-BL 14780
5.00 EI 5 PR-TWEED-BL 14781
7.50 EI 7,5 PR-TWEED-BL 14782
