Unbal. Connection
ESSENTIALS

CFU PP

Double your connection

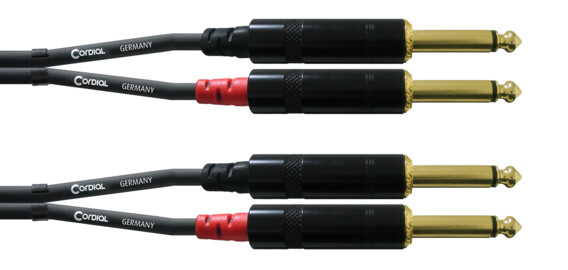

Cordial’s practical twin cable CFU PP is the perfect tool for establishing interference-free unbalanced connections. The color coding (red/black) makes it easy to identify both channels effortlessly, no matter if used in connection with keyboards, synthesizers turntables, drum machines or electric pianos. Thanks to the solid cable design and the utilization of proven REAN by NEUTRIK connectors, it provides an untainted, pure sound experience in the rehearsal room, in the studio or on stage.



Product information
cable intro cable 3
cable assign PP
Brand REAN
plug
2 1/4" Plug mono
Specifications / Tender
Type Twin microphone cable
Part no. intro cable 3

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 4,3 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number
CFU 0.3 PP
CFU 0.6 PP
CFU 0.9 PP
CFU 1.5 PP
CFU 3 PP
CFU 6 PP
