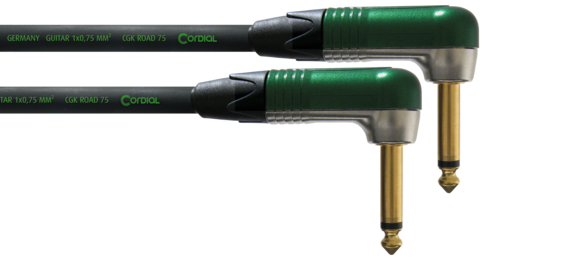

Our CRI PP ROAD is the special solution for all musicians who like two right-angled plugs, suitable for amps or foot pedals as well. Two rectangular plugs and all the other benefits of our ROAD Line, e.g. a completely insulated connector housing achieved by a special green coating (Controlled Conductivity) and highly conductive and partly gold-plated contact areas.
Instrument
PEAK
CRI RR
Product information
| cable | CGK ROAD 75 |
| cable assign | PP |
| Brand | NEUTRIK/CORDIAL |
| plug |
1 1/4" Plug rectangular mono
1 1/4" Plug rectangular mono
|
Specifications / Tender
| Type | Instrument cable |
| Part no. | CGK-ROAD 75 |
Mechanical data
| Conductor area | 0,75 mm² |
| Composition of conductor | 42 x 0,15 mm bare copper |
| Conductor isolation | TPE |
| Composition of cores | coaxial composition |
| Screen | spiral wounded copper wire screen + conductive plastic |
| Overall jacket | PVC |
| Overall diameter | 7,2 ± 0,2 mm |
| Weight | 60 g/m |
| Working temperature | |
| mobile | (-5 °C) - (+70 °C) |
| fixed | (-20 °C) - (+70 °C) |
| min.Bending radius | |
| mobile | ~ 74 mm |
| fixed | ~ 37 mm |
| Electrical data | |
| Conductor resistance | <25,5 Ω / km |
| Capacity (cond./cond.) | 88 pF / m ± 8 % |
| Test Voltage | 500 V eff. |
Product variants
| Colour | Part number |
| CRI 0.15 RR | |
| CRI 0.3 RR |
