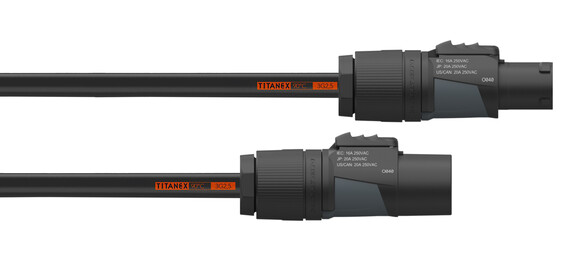

CFCA FCB 25 TRUE 1

New
High-performance Titanex® power cable with 2.5 mm² conductor area

The CFCA FCB 25 TRUE1 is the even more powerful version of the CFCA FCB TRUE1. Due to the 3x 2.50 mm² conductor area and the robust, three-pole NEUTRIK® powerCON® TRUE1® TOP (NAC3 X-W-TOP) connectors with interlock, a current carrying capacity of up to 16 A is achieved. The TRUE1® TOP connectors can be plugged under load and are dust and waterproof (IP65) when connected. The flexible and reliable TITANEX® bulk cable with insulation and outer sheath made of elastomer (polychloroprene) is oil resistant and flame retardant according to IEC/EN 60332-1-2 standard. Transparent heat shrink tubes at both ends allow individual labelling.

  • 3x 2.5 mm² conductor area
  • Oil resistant and flame retardant IEC/EN 60332-1-2 standard
  • Heat Shrink Tubes
  • Dust and water resistant (IP65) when plugged
  • Current carrying capacity up to 16 A
icon
PowerCON TRUE 1 TOP

Attention: Safe operation until 250V~ 16A. powerCON®TRUE1®TOP and Schuko® CEE 7/7 are equip with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

For safety reasons, please note the technical data as well general operating and safety instructions.

Product information
cable H07RN-F 3G2,5 TITANEX
Jacket Polychloropren
cable assign FCAFCB
connector brand NEUTRIK ®
plugs
1 PowerCON TRUE1 TOP male
1 PowerCON TRUE1 TOP female
technical data
Conductor area 2.5 mm²
AWG AWG 13
category Power
diameter 14.0 ± 0.2 mm
weight 195 g/m
Downloads
Lenghts & colours
Colour Length Matchcode item no.
0.50 CFCA 0.5 FCB 25 TRUE 1 14959
0.75 CFCA 0.75 FCB 25 TRUE 1 14960
1.00 CFCA 1 FCB 25 TRUE 1 14961
1.50 CFCA 1.5 FCB 25 TRUE 1 14962
3.00 CFCA 3 FCB 25 TRUE 1 14963
5.00 CFCA 5 FCB 25 TRUE 1 14964
10.00 CFCA 10 FCB 25 TRUE 1 14965
