Balanced Connection
elements

ES WW

New

The ES WW is used for balanced transmission of stereo signals, for example from a laptop to the stereo jack input of a recording device.

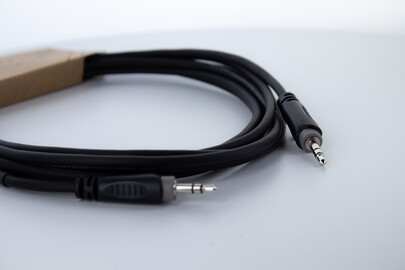

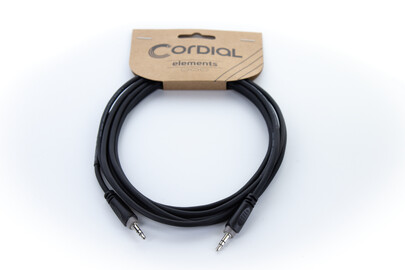

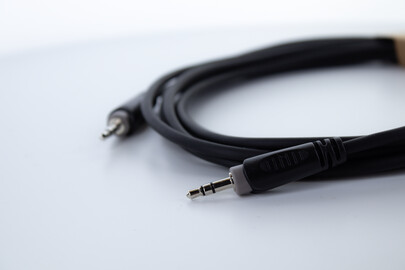

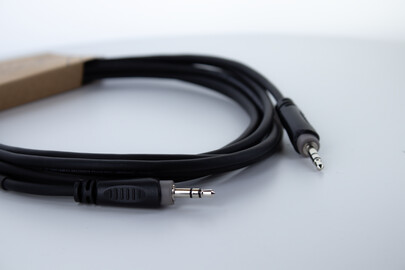

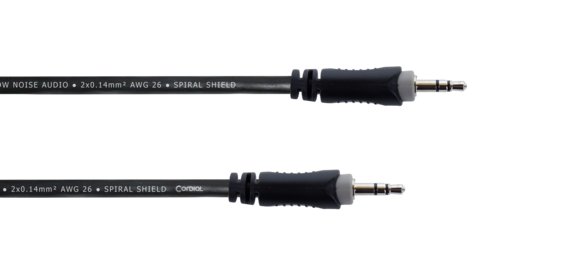

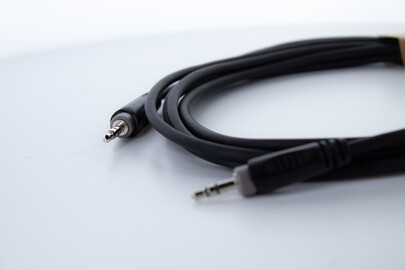

The conductor area of 2x 0.14 mm² and shielding of twisted copper strands (95% coverage) ensure unaltered signal transmission. The single-strand construction (18 x 0.10 mm) and the robust but flexible PVC sheathing compound ensure good wind ability and durability. The two 3.5 mm stereo jacks (mini jacks) protect the soldered joints with molded-on anti-kink sleeves and thus allow high plugging cycles.

Also available as ES WWR with a right angle mini jack.

Product information
cable elements MIC 2
Jacket PVC

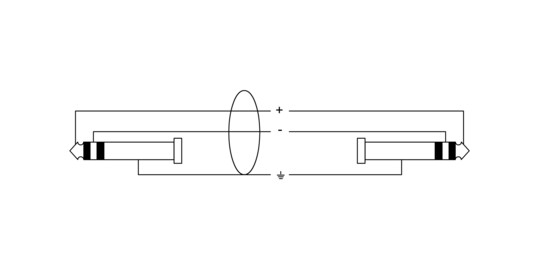

cable assign WW
connector brand -
plugs
1 1/8" Plug stereo
1 1/8" Plug stereo
technical data
Technical facts
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10 mm
Material bare copper
Conductor resistance 140 Ohm/km
Shielding Spiral wound copper wire (spiral shield, 95% coverage)
Capacity cond.-cond. (pF/m) 35 pF/m
category Microphone
diameter 4.0 mm
Conductor isolation PE
Lenghts & colours
Colour Length Matchcode item no.
0.50 ES 0,5 WW 14827
1.00 ES 1 WW 14828
1.50 ES 1,5 WW 14829
3.00 ES 3 WW 14830
