Power-DMX Hybrid
select

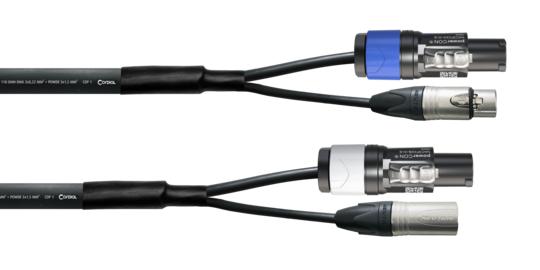

CPH DMX 1-5 PWR 1

Power and 5-pol. DMX (3 poles assigned) hybrid cable

The hybrid cable CPH DMX 1-5 PWR 1 consists of a 1.50 mm² power cable and a balanced AES/EBU data cable. Due to the 3x 1.50 mm² conductor area and the robust, three-pole NEUTRIK® powerCON® NAC3FCA-1 & NAC3FCB-1 plugs with interlock, a current-carrying capacity of up to 16 A is achieved.

The DMX data line with 110 Ohm characteristic impedance (AES/EBU) is protected against interference from the power line. The NEUTRIK® 5-pin XLR connectors used have a three-pin assignment.

  • 3-pole assigned
  • Split 30 cm
  • Power conductor area 3 x 1.50 mm²
  • Certified quality product according to VDE standards
  • Transparent shrink tubes for cable marking
  • Current-carrying capacity up to 16A
  • Power quality plug according to IEC 61984, UL 94 V-0, VDE, SEV standards
  • XLR quality plugs according to UL 94 V-0, IEC 61076-2-103, IEC 68-2-20 standards
icon
PowerCON

Attention: Safe operation until 250V~ 16A. The powerCON® plug is a connector without breaking capacity, i.e. the powerCON® should not be connected or disconnected under load or live! Exception: In combination with chassis connector NAC3MPXXA, NAC3MPXXA-WOT and NAC3MPXXB, NAC3MPXXB-WOT (IEC 61984).

For safety reasons, please note the technical data as well general operating and safety instructions.

icon
Caution: DMX logic!

In contrast to the audio cables, the XLR female is on the controlled unit (e.g. moving head) and the XLR male on the controlling unit (e.g. lighting console). The powerCON® connectors are therefore designed to carry current from the lighting console to the controlled unit.

Product information
cable
Jacket PVC
cable assign CPH_DMX1-5 PWR1
connector brand NEUTRIK ®
plugs
1x XLR-female 5-pole
1x powerCON® NAC3FCA-1
1x XLR-male 5-pole
1x powerCON® NAC3FCB-1
technical data
Technical facts
Conductor area 0.22mm² / 1.50 mm²
AWG AWG 24 / AWG 16
Composition of conductor 7 x 0.20 mm / 30 x 0.245 mm
Material tinned copper / bare copper
Conductor resistance 85 Ohm/km (0.22mm²)
Shielding AL foil + tinned copper braided screen
Capacity cond.-cond. (pF/m) 40 pF/m
category Hybrid
diameter 15.5mm ± 0.4mm
weight bulk cable 266 g/m
Conductor isolation PE
Downloads
Lenghts & colours
Colour Length Matchcode item no.
1.50 CPH 1,5 DMX 1-5 PWR 1 13115
3.00 CPH 3 DMX 1-5 PWR 1 13116
5.00 CPH 5 DMX 1-5 PWR 1 13117
10.00 CPH 10 DMX 1-5 PWR 1 13118
