Y-Adapter
ESSENTIALS

CFY GPP

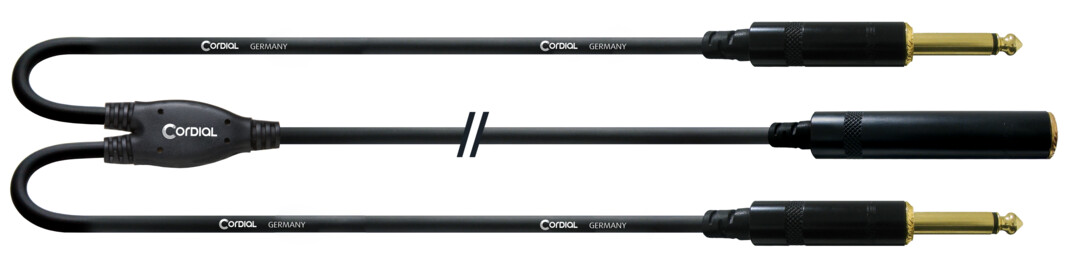

The CFY GPP 1x 6.3 mm mono jack socket to 2x 6.3 mm mono jack plug adapter cable is used whenever you need to merge 2x mono into 1x mono, for example when splitting mixer signals.

The splitter cable has a cross section of 2x 0.22mm² and its split length at both ends is approx. 15 cm. The contacts of the REAN plugs (from the Neutrik® product line) are gold plated to protect the metal parts against corrosion. As usual with Cordial, the Cinch (RCA) plugs are hand soldered.

Product information
cable intro cable 1
cable assign GPP
Brand REAN
plug
1 1/4" Plug Socket mono
2 1/4" Plug mono
Specifications / Tender
Type Microphone cable
Part no. intro cable 1

Mechanical data

Conductor area 0,22 mm²
AWG AWG 24
Composition of conductor 28 x 0,10 mm bare copper
Conductor isolation PE
Composition of cores 2 twisted pairs
Screen spiral shield
Overall jacket PVC
Overall diameter 5,9 ± 0,2 mm
Weight
Working temperature
mobile
fixed
min.Bending radius
mobile
fixed
Electrical data
Conductor resistance 80 Ω / km
Capacity (cond./cond.) 80 pF / m
Capacity (cond./screen)
Test Voltage
Product variants
Colour Part number
CFY 0.3 GPP
