DMX-AES/EBU-110 Ohm

CMD 12

New

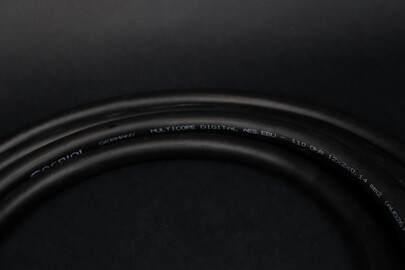

Multicore Digital AES EBU

Our CMD  12 is a highly flexible, easily reelable DMX multicore, especially suitable for the use on stage and features 12 channels for the transmission of DMX and audio signals.

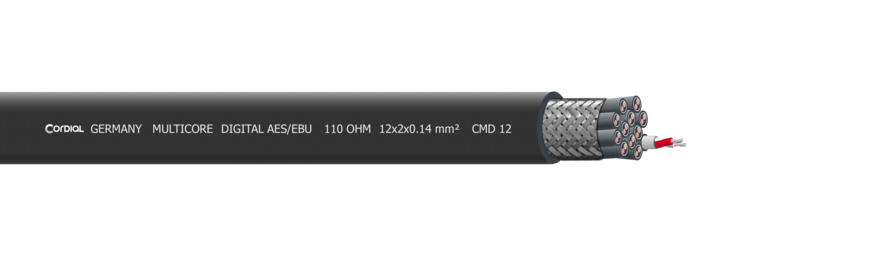

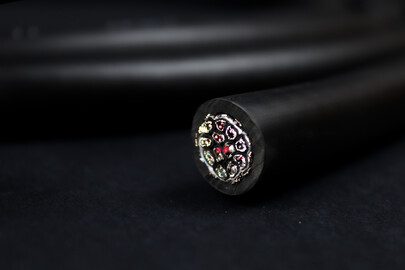

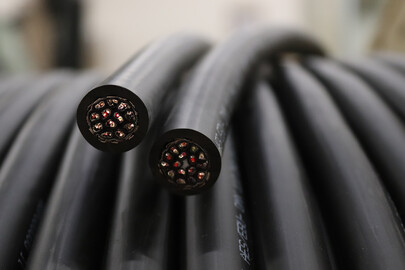

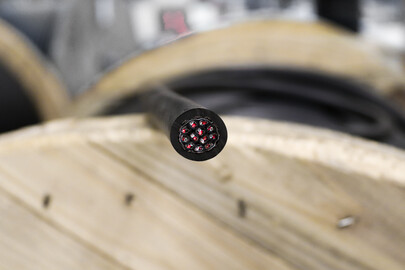

The interior design features 12 twisted wire pairs of tinned copper (with a cross-section of 2 x 0,14 mm² each, AWG 26) and each is also separately shielded by a spiral shield in combination with a braid of tinned copper wires (double shielding = spiral shielding plus braided shielding). Its jacket consists of particularly weather resistant, flexible and notch resistant PVC.

Due to its characteristic impedance of 110 Ω, the DMX multicore cable conforms with AES/EBU standards.

Product information
Conductor area 0.14 mm²
AWG AWG 26
Composition of conductor 18 x 0.10
Material tinned copper
Conductor resistance 140 Ohm/km
Shielding tinned copper braided screen
Capacity cond.-cond. (pF/m) 45 pF / m
Specifications
Type Digital Audio Multicore
Part no. CMD 12

Mechanical data

Conductor area 0,14 mm²
Composition of conductor 18 x 0,10 mm tinned copper
Conductor isolation PE
Composition of cores 12 twisted pairs
Screen tinned copper braided screen
Overall jacket PVC
Overall diameter  16,0 ± 0,5 mm
Weight 300 g/m
Working temperature
mobile (-15 °C) - (+60 °C)
fixed (-25 °C) - (+80 °C)
min.Bending radius
mobile ~ 160 mm
fixed ~ 80 mm
Electrical data
Conductor resistance 140 Ω / km
Capacity (cond./cond.) 45 pF / m
Capacity (cond./screen) 87 pF / m
Characteristic impedance 110 Ω / m
Test Voltage 500 V eff.
